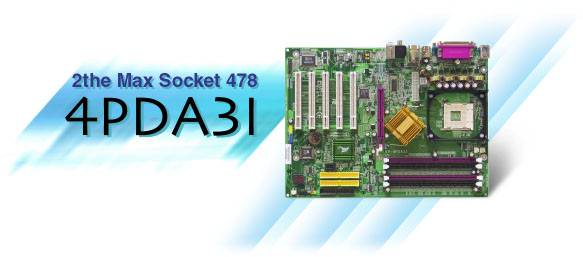

4pda3i - 2the Max
Socket 478 4PDA3I Intel® i865PE chipset Y2K Approval Processor(CPU): Supports socket 478 motherboard at 100-350 MHz external clock speed Supports Intel® Pentium® 4 up to 3.2+GHz with 533/800MHz FSB Supports Hyper-Threading Vcore (-0.100v ~ +0.075v @+0.0125) adjustable in BIOS VDIMM Voltage (0.00v ~ 0.70v @+0.1v) adjustable in BIOS AGP Voltage (0.00v ~ +0.70v @+0.1v) adjustable in BIOS AGP/PCI Clock output frequency with 1MHz fine tuning Chipset: Designed with Intel® 865PE AGPset (i865PE + ICH5) DRAM Memory: 4 x 184-pin DDR DIMM. Supports single-sided or double-sided 2.5v DDR-266/333/400 DIMMs with dual channel architecture in 64/128/256/512Mb technologies. Supports up to 4GB system memory. Expansion Slot: Supports 5 x PCI Bus Master slots, a jumperless PCI INT# control scheme which reduces confusion of configuration when plugging in PCI and AGP card(s). 8X/4X AGP x 1 On Board PCI IDE: Supports ATAPI (e.g. CD-ROM) devices on IDE 1, 2 interfaces. 2 independent high performance PCI IDE interfaces (up to 4 IDE devices) capable of supporting PIO Mode 3/4 and Ultra ATA-33/66/100 devices. On Board Serial ATA: 2 x Serial ATA ports from ICH5 with up to 150Mbps bandwidth from ICH5. On Board LAN: Onboard Realtek RTL8101L 100Mb Fast Ethernet controller. On Board I/O: Onboard Winbond W83627HF-AW LPC bus I/O controller. Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, Two Serial, Game and IrDA. Supports Hardware Monitoring function. USB: Embedded USB controller for 8 x USB connectors compliant with USB 2.0 (2 optional). Onboard Debug Card: Built-in 2theMax Debug (POST) Card with LED display which can help user locate hardware problem during bootup. BIOS: 2Mb Award Plug & Play BIOS which will upgrade to the current BIOS as they are released at http://www.2themax.com under Drivers Page. Supports ACPI S3 (Suspend TO RAM) mode in ACPI compliant O/S. Supports EZ Boot(TM) for fast bootable device selection. Supports Magic Health (TM) for system hardware statue report during system boot-up. Extended Function: Supports USDM software to offer motherboard hardware monitoring for temperature & fan speed detection under Windows® 95/98 (Including temperature, voltage, cooling fan speed). Built-in WOL (Wake On LAN) Connector. Built-in AC97 Digital Audio: Onboard Realtek ALC-65X selectable 2 or 6-CH audio CODEC (AC97 v2.2 compliant). Supports Aux-In, CD-In, SPDIF-in and SPDIF-out. Supports Front panel audio for Mic-in and stereo Line-out only. Power Management: Software power-down when using Windows® 95/98/2000/ME/XP. Supports exclusive USDM (Unified System Diagnostic Manger) & Hardware Monitoring function Supports ring-in feature (remote power-on through external modem which allows system to be turned on remotely). Power Loss Recovery which in the event of a power interruption, your system will automatically turn itself back on without user attention. Supports CPU Hardware sleep and System Management Mode (SMM). Supports Hot Key which features any key or password Keyboard Power-On function (KBPO). Supports the CPU, PWR and Chassis fan Auto Stop in sleep mode. Supports the System Power LED (Panel) blinks in the sleep mode. Power Connector: Built-in ATX 20 pins power supply connector. Form Factor: 225 mm x 305mm ATX size. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : 2 The Max Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
