8rda+v2 - 2the Max

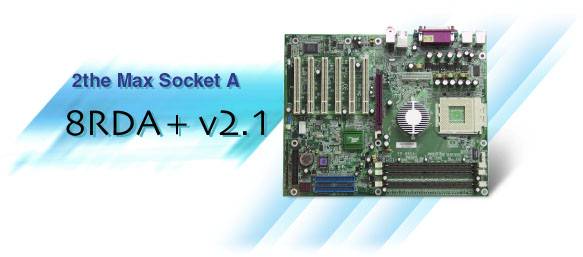

8RDA+ v2.1 nVidia Socket A Motherboard nVidia nForce2 Ultra 400 + MCP-T AGP set Y2K Approval Processor(CPU): Supports Athlon, Duron, MP, XP (Thoroughbred) Processor up to XP3200+ with 266/333/400MHz FSB. Support 100-250MHz external clock. 1MHz increment with key-in function for external clock. Vcore (1.400v ~ 2.20v @+0.025v) adjustable in BIOS. VDD (1.6v / 1.8v / 2.0v) adjustable in BIOS. AGP (1.5v ~ 1.8v @+0.1v) adjustable in BIOS. VDIMM (2.50v / 2.63v / 2.77v / 2.90v) adjustable in BIOS. Multiplier 3x-24x adjustable in BIOS. Chipset: Designed with nVidia nForce2 Ultra 400 + MCP-T AGP set. DRAM Memory: Supports up to 3GB DDR RAM on board, you can use 184pins 128bits DIMM x 3. Supports DDR DIMM RAM at PC1600/ PC2100/ PC2700/ PC3200. Expansion Slot: 6 PCI Bus Master slots. A jumperless PCI INT# control scheme which reduces configuration confusion when plugging in PCI and AGP card(s). Allow selection of Individual PCI IRQ. 8x speed AGP X 1. On Board PCI IDE: Supports ATAPI (e.g. CD-ROM) devices on IDE 1, 2 interfaces. 2 independent high performance PCI IDE interfaces capable of supporting Ultra ATA-133 hard disk. onboard IEEE 1394: Integrate OHCI 1.1 1394a controller in MCP-T. Up to two 400-Mbps 1394a ports support with external 1394a Phy. On Board LAN: (by Realtek RTL8201L) Integrated 10/100Mb fast Ethernet controller in chipset with external Realtek RTL8201L physical Layer by RJ-45 connector. On Board I/O: On-chip Super Multi-I/O for 1 FDD, 1 Parallel Port (EPP, ECP), 2 Serial Ports and 1 fast IR port. I/O Connector: Supports PS/2 MOUSE and PS/2 Style Keyboard. COM1, COM2, Printer, Audio-in/out, MIC connectors. Game Port by extra Cable. USB: Support up to 6 x Universal Serial Bus (USB2.0) connector. The onboard south bridge chip provides the means for connecting PC peripherals such as keyboards, joysticks and modems. Onboard Debug Card: Built-in 2theMax Debug (POST) Card with LED display which can help user locate hardware problem during bootup. BIOS: 2Mb Award Plug & Play BIOS with unique "SmartFlash" designed. By simply pressing [Alt] [F2] to execute the built in "Award Flash Program" , which upgrade to the current BIOS as they are released at http://www.2themax.com under Drivers Page. Built-in AC97 Digital Audio: (By RealTek ALC650) Compliant with AC97 2.2 specification 6 channel slot slectable DAC output for multi-channel applications Supports digital SPDIF. (optional) Extended Function: RAM speed adjustable (50%-200% of CPU speed), user can maximize the RAM speed. Built-in WOL (Wake On LAN) Connector. Power Management: Software power-down when using Windows® 98/2000/ME/XP. Supports Suspend to RAM (STR). Provide an almost instant on system. Supports ring-in feature (remote power-on through external modem which allows system to be turned on remotely). Resume by alarm which allows your system to turn on at a pre-selected time. Power Loss Recovery which in the event of a power interruption, your system will automatically turn itself back on without user attention. Supports CPU Hardware sleep and System Management Mode (SMM). Supports the CPU and PWR Auto Stop in sleep mode. Supports the System Power LED (Panel) blinks in the sleep mode. Power Connector: Built-in ATX 20 pins power supply connector. Form Factor: 245mm x 305mm ATX size. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : 2 The Max Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
