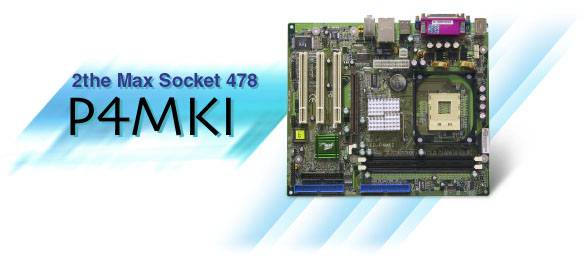

p4mki - 2the Max
Socket 478 P4MKI VIA P4M266A chipset Y2K Approval Processor(CPU): Supports socket 478 motherboard at 133-165 MHz external clock speed Supports Intel® Pentium® 4 up to 3.0+GHz with 533MHz FSB Supports Intel® Celeron® up to 2.4+GHz with 400MHz FSB Chipset: Designed with VIA P4M266A + 8235 AGPset with VIA ProSavage 8 Graphics core DRAM Memory: 2 x 184-pin DDR DIMM. Supports single-sided or double-sided 2.5v DDR-266 DIMMs in 64/128/256/512Mb/1Gb technologies. Supports up to 2GB system memory. Expansion Slot: Supports 3 x PCI Bus Master slots, a jumperless PCI INT# control scheme which reduces confusion of configuration when plugging in PCI and AGP card(s). 4X AGP x 1 On Board PCI IDE: Supports ATAPI (e.g. CD-ROM) devices on IDE 1, 2 interfaces. 2 independent high performance PCI IDE interfaces (up to 4 IDE devices) capable of supporting PIO Mode 3/4 and Ultra ATA-33/66/100 devices. On Board LAN: 10/100Mb Fast Ethernet from onboard VIA VT6103 controller. On Board I/O: Onboard Winbond W83627HF-AW LPC bus I/O controller. Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, Two Serial, Game and IrDA. Supports Hardware Monitoring function. USB: 6 USB connectors compliant with USB2.0 from embedded USB controller (2 optional). BIOS: 2Mb Award Plug & Play BIOS. By simply pressing [Alt] [F2] to execute the built in "Award Flash Program" , which will upgrade to the current BIOS as they are released at http://www.2themax.com under Drivers Page. Supports ACPI S3 (Suspend TO RAM) mode in ACPI compliant O/S. Supports EZ Boot(TM) for fast bootable device selection. Supports Magic Health (TM) for system hardware statue report during system boot-up. Extended Function: Supports USDM software to offer motherboard hardware monitoring for temperature & fan speed detection under Windows® 95/98 (Including temperature, voltage, cooling fan speed). Built-in WOL (Wake On LAN) Connector. Built-in VGA: VIA ProSavage 8 Graphics core. Built-in C-Media Digital Audio: Onboard Cmedia CMI 9739A selectable 2 or 6-CH audio CODEC (AC97 v2.2 compliant). Supports Aux-In, CD-In, SPDIF-in and SPDIF-out (optional) Supports Front panel audio for Mic-in and stereo Line-out only. Power Management: Software power-down when using Windows® 95/98/2000/ME/XP. Supports exclusive USDM (Unified System Diagnostic Manger) & Hardware Monitoring function Supports ring-in feature (remote power-on through external modem which allows system to be turned on remotely). Power Loss Recovery which in the event of a power interruption, your system will automatically turn itself back on without user attention. Supports CPU Hardware sleep and System Management Mode (SMM). Supports Hot Key which features any key or password Keyboard Power-On function (KBPO). Supports the CPU, PWR and Chassis fan Auto Stop in sleep mode. Supports the System Power LED (Panel) blinks in the sleep mode. Power Connector: Built-in ATX 20 pins power supply connector. Form Factor: 245 mm x 210mm Micro ATX size. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : 2 The Max Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
