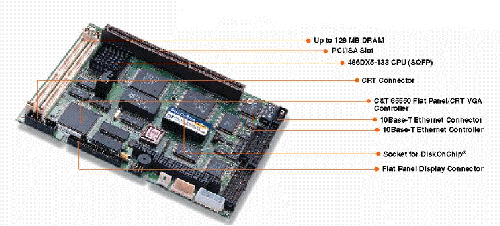

PCM-4894 - AAEON
* CPU AMD 486DX5-133 (5X86-P75) SQFP * CPU type Onboard SQFP * BIOS Award 128KB FLASH BIOS * Chipset ALi 1487/1489 * I/O Chipset Winbond 83877TF * L2 Cache Onboard 128KB level two Cache. Could be upgraded to 512KB by factory * Memory Onboard two 72-pin SIMM sockets support up to 128 Mbytes Fast Page or EDO DRAM * Enhanced IDE Supports two IDE devices. Supports Bus Master mode with data transfer rate 33MB/sec. * FDD interface Supports two floppy disk drives, 5.25" (360KB and 1.2MB) and/or 3.5" (720KB, 1.44MB, and 2.88MB) * Parallel port One bi-directional parallel port. Supports SPP, ECP, and EPP modes * Serial port Three RS-232 and one RS-232/422/485 serial port. Ports can be configured as COM1, COM2, COM3, COM4, or disabled individually. (16C550 equivalent) * KB/Mouse connector 8-pin connector supports PC/AT keyboard and PS/2 mouse * Real Time Clock Dallas DS-12887A or equivalents, powered by lithium battery for data retention * Watchdog timer Can generate a system reset, IRQ15, or NMI Software selectable time-out interval (2 sec. ~ 255 sec., 1 sec./step) * DMA 7 DMA channels (8237 equivalent) * Interrupt 15 interrupt levels (8259 equivalent) * Power management I/O peripheral devices support power saving and doze/standby/suspend modes. APM 1.1 compliant * Flat Panel/CRT Interface * Chipset C&T 65550 * Display memory Onboard 2MB EDO display memory * Display type Supports non-interlaced CRT and LCD (TFT, DSTN, and MONO) displays. Can display both CRT and Flat Panel simultaneously * Resolution UP to 1024x768@64K colors (CRT/LCD simultaneous display) * Digital I/O Interface * 4 TTL digital input bits & 4 Open Collector digital output bits * Ethernet Interface * Chipset Realtek RTL8029AS PCI 10Base-T Ethernet controller * Ethernet interface Onboard 10Base-T RJ-45 connector. Optional Remote Boot ROM function * SSD Interface One 32-pin DIP socket supports M-Systems DiskOnChip 2000 series up to 288MB * Expansion Interface * PC/104 connector One 16-bit 104-pin connector onboard * PCI slot One PCI/ISA slot onboard * Mechanical and Environmental * Power supply voltage +5V (4.75V to 5.25V), +12V (11.4V to 12.6V) * Typical power requirement +5V @ 2.5A * Operating temperature 32o to 140oF (0o to 60oC) * Board size 8"(L) x 5.75"(W) (203mm x 146mm) * Weight 1.2 lb. (0.5 Kg) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AEON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
