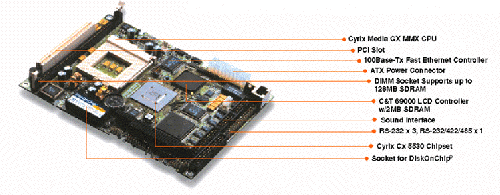

PCM-4896 - AAEON
* CPU Cyrix MMX enhanced Media GXm integrated processor 200~300MHz * BIOS Award 256KB Flash BIOS * Chipset Cyrix Media GXm MMX/Cx5530 * I/O Chipset National NS97317/ITE IT8661F wtih fully 16-bit I/O decoded * Memory Onboard one 168-pin DIMM socket supports up to 128 Mbytes SDRAM * Enhanced IDE Supports two IDE devices. Supports Ultra DMA/33 mode with data up to transfer rate 33MB/sec. * FDD interface Supports up to two floppy disk drives, 5.25" (360KB and 1.2MB) and/or 3.5" (720KB, 1.44MB, and 2.88MB) * Parallel port One bi-directional parallel port. Supports SPP, ECP, and EPP modes * Serial port Three RS-232 and one RS-232/422/485 serial port. Ports can be configured as COM1, COM2, COM3, COM4, or disabled individually. (16C550 equivalent) * IR interface Supports one IrDA Tx/Rx Header * KB/Mouse connector 8-pin connector supports PC/AT keyboard and PS/2 mouse * USB connector 4 x 2 header onboard supports dual USB ports * Battery Lithium battery for data retention * Watchdog timer Can generate a system reset, IRQ15, or NMI. Software selectable time-out interval (2 sec. ~ 255 sec., 1 sec./step) * DMA 7 DMA channels (8237 equivalent) * Interrupt 15 interrupt levels (8259 equivalent) * Power management Supports ATX power supply. Supports PC97, LAN wake up, and modem ring-in functions. I/O peripheral devices support power saving and doze/standby modes. APM 1.2 compliant * Flat Panel/CRT Interface (PCM-4896) * Chipset C&T 69000 * Display memory Built-in 2MB SDRAM * Display type Supports non-interlaced CRT and up to 36-bit LCD (TFT, DSTN, and MONO) displays. Can display both CRT and Flat Panel simultaneously * Resolution Up to 1024x768@64K colors * Sound Interface * Chipset Cyrix Cx5530 * 16-bit stereo digital audio Full-duplex support enables simultaneous record and playback for Internet communications software * Ethernet Interface * Chipset Realtek RTL8139B 100Base-Tx Fast Ethernet controller * Ethernet interface 100Base-Tx RJ-45 connector. Optional Remote Boot ROM function * SSD Interface One 32-pin DIP socket supports M-Systems DiskOnChip® 2000 series up to 144MB * Digital I/O Interface 4 TTL digital input bits & 4 Open Collector digital output bits * Expansion Interface * PC/104 connector One 16-bit 104-pin connector onboard * PCI slot One 32-bit PCI slot onboard * Mechanical and Environmental * Power supply voltage +5V (4.75V to 5.25V), +12V (11.4V to 12.6V) * Typical power requirement +5V @ 2.5A * Operating temperature 32 to 140°F (0 to 60°C) * Board size 8"(L) x 5.75"(W) (203mm x 146mm) * Weight 1.2 lb. (0.5 Kg) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AEON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
