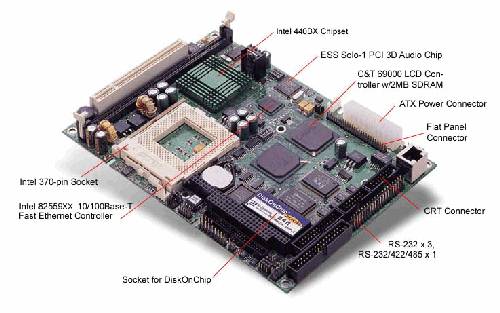

PCM-6890B - AAEON
* CPU Intel FC-370 Pentium III (Coppermine), Celeron, and compatible CPUs (with system bus frequencies of 66/100MHz) * CPU socket Intel Socket 370 * BIOS Award 256KB Flash BIOS * Chipset Intel 440BX * I/O Chipset ITE IT8661F/Winbond W83977EF. Fully 16-bit I/O decoded * Memory Onboard one 168-pin DIMM socket supports up to 256 Mbytes SDRAM * Enhanced IDE Supports two IDE devices. Supports Ultra DMA/33 mode with data transfer rate up to 33MB/sec. * FDD interface Supports two floppy disk drives, 5.25" (360KB and 1.2MB) and/or 3.5" (720KB, 1.44MB, and 2.88MB) * Parallel port One bi-directional parallel port. Supports SPP, ECP, and EPP modes * Serial port Three RS-232 and one RS-232/422/485 serial port. Ports can be configured as COM1, COM2, COM3, COM4, or disabled individually. (16C550 equivalent) * KB/Mouse connector 8-pin (4 x 2) connector supports PC/AT keyboard and PS/2 mouse * USB connectors One 4 x 2 header onboard supports dual USB ports * Battery Lithium battery for data retention * Watchdog timer Can generate a system reset, IRQ15 or NMI. Software selectable time-out interval (32 sec. ~ 254.5 min., 1 min./step) * DMA 7 DMA channels (8237 equivalent) * Interrupt 15 interrupt levels (8259 equivalent) * Power management Supports ATX power supply. (Optional AT power adaptor) Supports PC97 and modem ring-in functions. I/O peripheral devices support power saving and doze/standby/ suspend modes. APM 1.2 compliant * H/W status monitoring Winbond W83781D H/W status monitoring IC supports power supply voltages and temperatures monitoring * Flat Panel/CRT Interface * Chipset C&T 69000 * Display memory Built-in 2MB SDRAM * Display type Supports non-interlaced CRT and LCD (TFT, DSTN, and MONO) displays. Can display both CRT and Flat Panel simultaneously * Resolution Up to 1024x768@64K colors (CRT/LCD simultaneous display) * PCI Audio Interface * Chipset ESS Solo-1 PCI 3D Audio, Wave-Table Synthesis, full-duplex support enables simultaneous record and playback * Ethernet Interface * Chipset Intel 82559GD 10/100Base-T Fast Ethernet controller * Ethernet interface Onboard 10/100Base-T RJ-45 connector. Optional Remote boot ROM function * SSD Interface One 32-pin DIP socket supports M-Systems DiskOnChip 2000 series up to 288MB * Expansion Interface * PC/104 connector One 16-bit 104-pin connector onboard * PCI slot One 32-bit PCI slot onboard * Mechanical and Environmental * Power supply voltage +5V (4.75V to 5.25V), * Operating temperature 32o to 140oF (0o to 60oC) * Board size 8"(L) x 5.75"(W) (203mm x 146mm) * Weight 1.2 lb. (0.5 Kg) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AEON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
