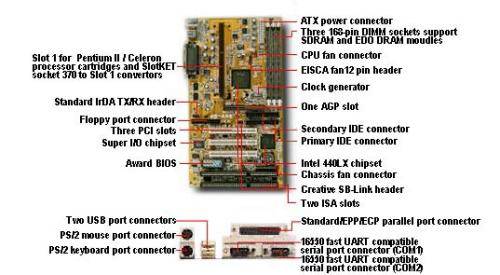

AH6 - ABIT
CPU 1.Supports 66,75* and 83* MHz CPU external clock speeds 2. Supports Pentium® II 233~333MHz processor cartridge 3. Supports Celeron® 266~333MHz processor cartridge (Based on 66MHz clock) Chipset 1.Intel 440LX chipset (82443LX and 82371AB) 2. Supports Ultra DMA/33M IDE protocol 3. Supports Advanced Configuration and Power Management Interface (ACPI) 4.Supports AGP 66MHz/133MHz (Sideband) 3.3V device Memory 1.Three 168-pin DIMM sockets for 3.3V unbuffered DRAM modules 2. DIMM sockets support SDRAM and EDO DRAM modules 3. Supports up to 384MB MAX. (8,16,32,64,128MB EDO or SDRAM) 4. ECC support Cache Memory 1. Level 1 and Level 2 cache built into Intel Pentium II processor cartridge System BIOS 1. CPU Soft Menu - eliminates the need for jumpers or DIP switches to set CPU parameters 2. Award Plug and Play BIOS supports APM, DMI and ACPI 3. Write-protect Anti-Virus function by AWARD BIOS 4. Year 2000 compliant Functions 1. One floppy port connector supporting up to 2.88MB floppy drive, 3 mode floppy drive 2. Two channels of bus master IDE ports connectors for up to four IDE devices (including LS-120MB floppy drive) 3. One built-in Standard/EPP/ECP parallel port connector 4. Two built-in 16550 fast UART compatible serial ports connectors 5. Built-in PS/2 mouse and keyboard ports connectors 6. Built-in standard IrDA TX/RX header and SB-LinkTM header 7. Two built-in USB ports connctors Miscellaneous 1.ATX form factor 2.One AGP slot, three PCI slots and two ISA slots 3.Dimensions : 305*170mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ABIT Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
