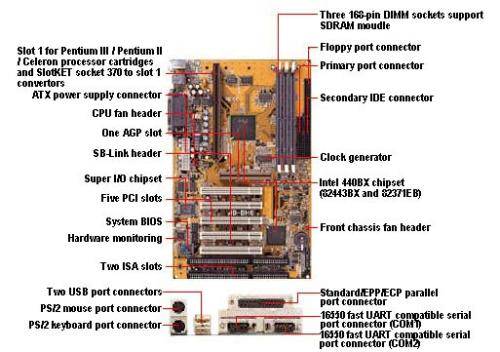

BH6 - ABIT
CPU 1.Supports Pentium®III 450~700 MHz processor cartridge. 2.Supports Pentium®II 350 ~ 450 MHz processor cartridge (Based on 100MHz clock) 3.Supports Pentium®II 233 ~ 333 MHz processor cartridge (Based on 66MHz clock) 4.Supports Celeron®266 ~ 333 MHz processor cartridge (Based on 66MHz clock) Chipset 1.Intel 440BX chipset (82443BX and 82371EB) 2.Supports Ultra DMA/33 IDE protocol 3.Supports Advanced Configuration and Power Management Interface (ACPI) 4.Supports AGP 66MHz/133MHz (Sideband) 3.3V device Memory 1.Three 168-pin DIMM sockets support SDRAM module 2.Supports up to 384MB MAX. (8, 16, 32, 64, 128MB SDRAM) 3.ECC support Cache Memory 1.Level 1 and Level 2 cache built into Intel Pentium®II processor cartridge System BIOS 1.CPU SOFT MENUTM II eliminates the need for jumpers or DIP switches needed to set CPU parameters 2.Award Plug and Play BIOS supports APM, DMI 3.BIOS setup support 66, 75, 83*, 100, 112*,124* and 133*MHz external clock 4.Write-Protect Anti-Virus function by AWARD BIOS 5.Year 2000 Compliant Multi I/O Functions 1.One Floppy port connector supporting up to 2.88MB floppy drive and 3 mode floppy drive 2. Two channels of bus master IDE ports connectors for up to four IDE devices (Including LS-120MB floppy drive ) 3. One Built-in Standard/EPP/ECP parallel port connector 4. Two built-in 16550 fast UART compatible serial ports connectors 5. Built-in PS/2 keyboard and PS/2 mouse ports connectors 6. Built-in standard IrDA TX/RX header 7.Built-in two USB ports connectors 8. SB-LinkTM header 9. Wake On Lan header Miscellaneous 1.ATX form factor 2.One AGP slot, Five PCI slots and Two ISA slots 3.Hardware monitoring -Included fan speed, voltages, and system environment temperature 4.Dimensions : 305*190mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ABIT Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
