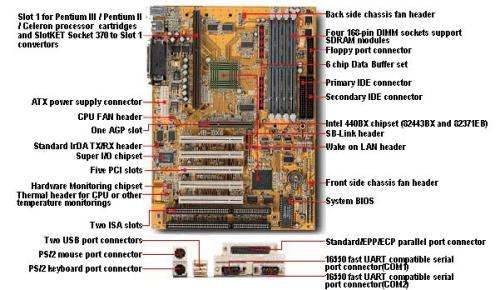

BX6 2.0 - ABIT
CPU 1.Supports Pentium® III 450~700MHz processor cartridge 2.Supports Pentium® II 233~450MHz processor cartridge 3.Supports Celeron® 266~400MHz processor cartridge 4.Supports future Slot 1 processors Chipset 1. Intel® 440BX chipset (82443BX and 82371EB) 2.Supports Ultra DMA/33 IDE protocol 3.Supports Advanced Configuration and Power Management Interface (ACPI) 4.Supports AGP 66/133 MHz (Sideband) 3.3V device Memory 1.Four 168-pin DIMM sockets support SDRAM modules 2.Supports up to 1GB max (8, 16, 32, 64, 128,256MB SDRAM) 3.Has 6 chip Data Buffer set 4.ECC support System BIOS 1.SOFT MENUTM II eliminates the need for jumpers or DIP switches to set CPU parameters 2. Award Plug and Play BIOS supports APM, DMI 3. Write-Protect Anti-Virus function by AWARD BIOS 4. Year 2000 Compliant Functions 1.One floppy port connector supporting up to 2.88MB floppy drive and 3 mode floppy drive 2. Two channels of bus master IDE ports connectors for up to four IDE devices (Including LS-120MB floppy drive) 3. One built-in Standard/EPP/ECP parallel port connector 4. Two built-in 16550 fast UART compatible serial ports connectors 5. Built-in PS/2 keyboard and PS/2 mouse port connectors 6. Built-in standard IrDA TX/RX header 7. Built-in two USB port connectors 8. Built-in Wake on LAN header 9. Bulit-in SB-LinkTM header Miscellaneous 1. ATX form factor 2. One AGP slot, Five PCI slots and Two ISA slots 3. Hardware monitoring - Including fan speed, voltages, system environment temperature, and Thermal header for CPU or other temperature monitoring 4. Keyboard and Mouse Wake Up 5. Dimensions : 305*220mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ABIT Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
