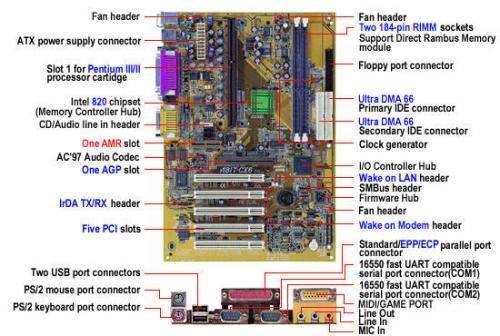

CX6 - ABIT
CPU 1. Supports Intel Pentium® III 450~800 MHz processor cartridge based on 100 & 133 MHz FSB 2. Supports Intel Pentium® II 350~450 MHz processor cartridge based on 100 MHz FSB 3. Reserves support for future Intel Pentium® III processors Chipset 1. Intel® 820 chipset 2. Supports 100/133MHz (Front Side Bus) 3. Supports Advanced Configuration and Power Management Interface (ACPI) 4. Supports AGP 1X/2X/4X (Sideband) 1.5V/3.3V device Memory 1. Two 184-pin RIMM sockets support Direct Rambus Memory module 2. Supports up to 1GB MAX. (64, 96, 128, 256MB) 3. Supports ECC Audio 1. AC'97 Digital Audio controller integrated 2. AC'97 Audio CODEC on board 3. Audio driver included System BIOS 1. SOFTMENUTM II eliminates the need for jumpers or DIP switches to set CPU parameters. 2. Award Plug and Play BIOS supports APM and ACPI 3. Write-Protect Anti-Virus function by AWARD BIOS 4. Year 2000 Compliant Multi I/O Functions 1. 2x Channels of Bus Master IDE Ports supporting up to four Ultra DMA 66 devices(Reserves support for future IDE specifications) 2. PS/2 Keyboard and PS/2 Mouse Connectors 3. 1x Floppy Port (up to 2.88MB) 4. 1x Parallel Port (EPP/ECP) 5. 2x Serial Ports 6. 2x USB Connectors 7. Audio connector (Line-in, Line-out, Mic-in, and Game Port) Miscellaneous 1. Support STR(Suspend to DRAM) 2. ATX form factor 3. 1 Universal AGP slot, 5 PCI slots and 1AMR slot 4. Hardware monitoring - Including fan speed, voltages, CPU and System temperature and one thermal header for other devices temperature monitoring 5. Keyboard and Mouse Power On 5. Built-in Wake on LAN/Wake on Modem header 6. One Thermal Sensor Cable Included CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ABIT Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
