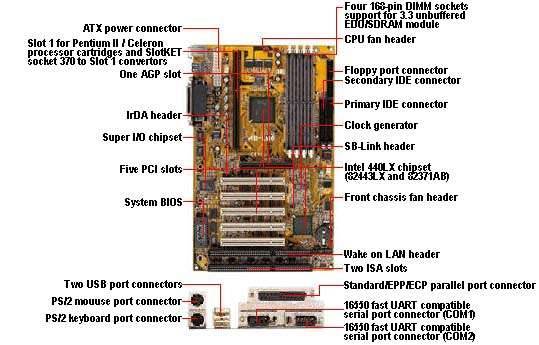

LM6 - ABIT
CPU 1.Employs switching type regulator to stabilize CPU operation. 2. Supports Pentium®II 233~333MHz processors cartridge. 3. Supports Celeron® 266~333MHz processor cartridge (Based on 66MHz clock) Chipset 1.Intel440LX chipset (82443LX and 82371AB) 2.Supports Ultra DMA/33 IDE protocol 3.Supports Advanced Configuration and Power Management Interface (ACPI) 4.Supports AGP 66/133 MHz (Sideband) 3.3V device Memory 1.Four 168-pin DIMM sockets for 3.3V unbuffered DRAM modules. 2.DIMM sockets support SDRAM, EDO DRAM. 3.Supports up to 512MB max (8, 16, 32, 64, 128MB EDO or SDRAM). 4. ECC support. Cache Memory 1.Level 1 and Level 2 cache built into Intel Pentium II processor cartridge System BIOS 1.CPU SOFT MENUTM II eliminates the need for jumpers or DIP switches needed to set CPU parameters 2.Award Plug and Play BIOS supports APM,DMI,ACPI 3. BIOS setup supports 66,75* and 83* MHz CPU external clock speeds 4. Write-protect Anti-Virus function by AWARD BIOS 5. Year 2000 compliant Multi I/O Functions 1.One Floppy port connector supporting up to 2.88MB floppy drive and 3 mode floppy drive 2.Two channels of bus master IDE ports connectors for up to four IDE devices (including LS-120MB floppy drive) 3.One built-in Standard/EPP/ECP parallel port connector 4.Two built-in 16550 fast UART compatible serial ports connectors 5.Built-in PS/2 keyboard and PS/2 mouse ports connectors 6.Built-in standard IrDA TX/RX header 7.Dimensions : 305*190mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ABIT Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
