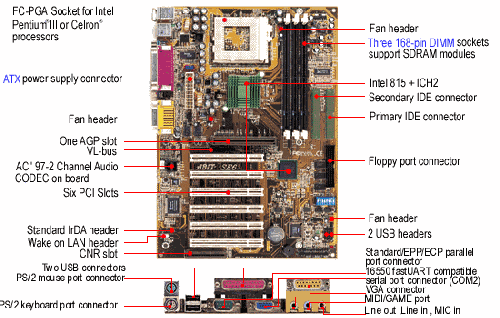

SE6 - ABIT
CPU 1. Intel Pentium® III 500~1GHz processor sockets based on 100 & 133MHz FSB 2. Intel Celeron® 566~677MHz processor sockets based on 66MHz FSB 3. Reserves support for future Intel® Pentium® III /Celeron processors Chipset 1. Intel 815E (ICH2) chipset 2. Supports 66/100/133MHz(Front Side Bus) 3. Supports AGP 1X/2X/4X (Sideband) 1.5/3.3V device. 4. Supports Advanced Configuration and Power Management Interface (ACPI) 5. Supports Ultra ATA/100,Ultra ATA/66,Ultra ATA/33 mode. Graphics 1. Chipset integrated AGP 2X 3D graphics acceleration. 2. Support AIMM (AGP In-line Memory Module) Memory 1. Three 168-pin DIMM sockets support SDRAM module 2. Supports up to 512MB MAX. ( 64, 128,256MB SDRAM) 3. Support 100MHz,133MHz SDRAM interface Audio 1. AC'97 2-channel Audio CODEC on board 2. Audio driver included System BIOS 1. CPU SOFT MENUTM II technology and DIP switche funtion. 2. Award Plug and Play BIOS supports APM, DMI 3. Write-Protect Anti-Virus function by AWARD BIOS. Multi I/O Functions 1. 2 channels bus Master IDE Ports support Ultra DMA 33/66/100 (up to 4 devices) 2. PS/2 Keyboard and PS/2 Mouse Connectors 3. 1 Floppy Port (up to 2.88MB) 4. 1 Parallel Port (EPP/ECP) 5. 2 Serial Ports 6. 2 USB Connectors 7. On board USB header for two extra USB channels 8.1 standard 15 pin VGA connector. 9. Audio connector (Line-in, Line-out, Mic-in, and Game Port) Miscellaneous 1. Support STR(Suspend to DRAM) 2. ATX form factor 3. 1 universal AGP slot, 6 PCI slots and 1 CNR slot 4. Hardware monitoring - Including fan speed, voltages, System environment temperature,and one Thermal header for CPU or other temperature monitoring 5. Keyboard and Mouse Power On 6. Built-in Wake on LAN /Wake on Modem/Open Chassis header 7. Built-in IrDA TX/RX header 8. VL-Bus Supports Flat Panel display or TV out (option) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ABIT Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
