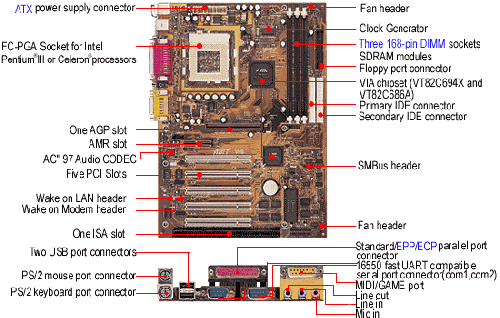

VH6 - ABIT
CPU 1. Supports Intel Pentium® III 450~933 MHz 2. Supports Intel Celeron® II 500 ~ 700 MHz processor socket based on 66 MHz FSB 3. Reserves support for future Intel Pentium® III / Celeron processors Chipset 1. VIA chipset (VT82C694X and VT82C686A) 2. Supports Advanced Configuration and Power Management Interface (ACPI) 3. Supports AGP 1X/2X/4X (Sideband) 3.3V device Memory 1. Three 168-pin DIMM sockets support SDRAM module 2. Supports up to 1.5GB MAX. (8, 16, 32, 64, 128, 256MB SDRAM) 3. Supports VCM module 4. Supports ECC Audio 1. AC'97 Audio CODEC on board 2. Audio driver included System BIOS 1. CPU SOFT MENUTM II technology and DIP switche funtion. 2. Award Plug and Play BIOS supports APM, DMI 3. Write-Protect Anti-Virus function by AWARD BIOS. Multi I/O Functions 1. 2 channels bus Master IDE Ports support Ultra DMA 33/66 (up to 4 devices) 2. PS/2 Keyboard and PS/2 Mouse Connectors 3. 1 Floppy Port (up to 2.88MB) 4. 1 Parallel Port (EPP/ECP) 5. 2 Serial Ports 6. 2 USB Connectors 7. On board USB header for two extra USB channels 8.Built-in IrDA TX/RX header . 9. Audio connector (Line-in, Line-out, Mic-in, and Game Port) Miscellaneous 1. ATX form factor 2. 1 AGP slot, 5 PCI slots , 1 ISA slot and 1AMR slot. 3. Hardware monitoring - Including fan speed, voltages, CPU and System temperature and one thermal header for other devices temperature monitoring 4. Built-in Wake on LAN header 5. Built-in Wake on Ring header CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ABIT Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
