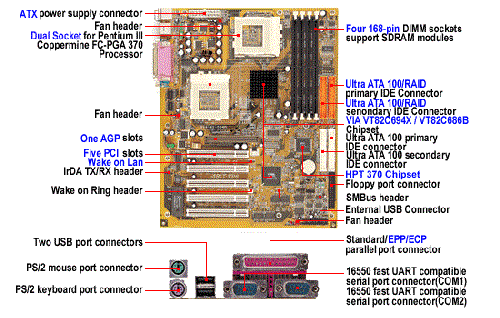

VP6 - ABIT
CPU 1. Supports Pentium III Coppermine FC-PGA 370 processor (Based on 66/100/133MHz clock) Chipset 1. VIA chipset (VT82C694X and VT82C686B) 2. Supports Advanced Configuration and Power Management Interface (ACPI) 3. Supports AGP 1X/2X/4X (Sideband) 3.3V device Ultra DMA 100 1. High Point HTP370 IDE Controller 2. Ultra DMA 100MB/Sec data transfer rate 3. RAID 0(stripping mode for boosting performance) 4. RAID 1 (mirroring mode for data security) 5. RAID 0 +1(stripping and mirroring) Memory 1. Four 168-pin DIMM sockets support SDRAM module 2. Supports up to 2 GB MAX. (8, 16, 32, 64, 128, 256,512MB SDRAM) 3. Supports ECC System BIOS 1. SoftMenuTM III to set CPU parameters 2. Award Plug and Play BIOS supports APM and DMI 3. Write-Protect Anti-Virus function by AWARD BIOS 4. Year 2000 Compliant Multi I/O Functions 1. 2 Channels of Bus Master IDE Ports support Ultra DMA 33/66/100(up to 4 HDD devices) 2. 2 Channels of Bus Master IDE Ports supporting Ultra DMA 33/66/100 3. PS/2 Keyboard and PS/2 Mouse Connectors 4. 1x Floppy Port (up to 2.88MB) 5. 1x Parallel Port (EPP/ECP) 6. 2x Serial Ports 7. 2x USB Connectors 8. On board USB header for two extra USB channels Miscellaneous 1. ATX form factor 2.1 AGP slot, 5 PCI slots 3. Hardware monitoring – Including Fan speed, Voltages, System environment temperature and one Thermal header for CPU or other temperature monitoring. 4. Built-in Wake on LAN/Wake on Ring header CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ABIT Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
