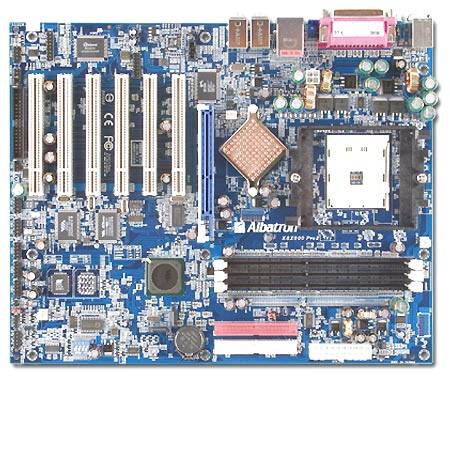

K8X800 ProII(V2.0) - Albatron
AMD Athlon?64 Processor Socket 754 with FSB 800 MHz 3 DDR200/266/333/400 Memory Sockets Built-in VIA Envy 24PT with 8 channel Audio Support (Bundle SPDIF2 Card Optional) Marvell 1Gbits LAN 2 Serial ATA150 Channels, Serial ATA RAID 0,1 2 IEEE1394 Ports 2 ATA133 Channels, up to 4 ATA 133 IDE Devices 8 USB 2.0/1.1 Ports (6 ports by optional cable) BIOS Mirror ? Voice Genie ?processor=AMD Athlon[TM] 64 Processor Processor FSB 800 MHz Chipset North Bridge : VIA K8T800 South Bridge : VIA VT8237 LAN Chip : Marvell MV8001 IEEE1394 Chip : VIA VT6307 Audio Chip : VIA VT1720 Evny 24PT I/O Chip: Winbond Smart I/O W83697HF Memory 3 * DDR Sockets: DDR200/266/333/400 NON-ECC DDR SDRAM up to 3GB Expansion Slots 1 x AGP(3.0) 8X slot (1.5V only) 6 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA133 Channels, up to 4 ATA 133 IDE devices Onboard I/O Connectors 1 x Floppy Connector 3 x USB 2.0/1.1 header (6 ports by optional cable) 2 x IEEE1394 header (2 ports IEEE1394 cable optional) 1 x CD_IN header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header ( 1 fan rotation detection function ) 2 x System fan headers ( 2 fan rotation detection function ) 1 x 10 pin system panel header (Intel spec) 1 x 3 pin Power LED header 1 x Front audio header (Intel spec) 1 x IrDA header 1 x Case Open detection header 2 x 5 pin Com port header 2 x 8 pin Game Port header I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1), RJ45,1 x Com(serial), 1 x Parallel,1x Line-in/Line-out(Speaker Out)/MIC/SUR_CEN/SUR/R:WOF,L:CEN Power 20-pin ATX power connector, 4-pin ATX 12V power connector BIOS Feature 4Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer Hardware Monitoring 3 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Zero Jumper Design BIOS Mirror ?Protect BIOS by creating an original mirror image of itself Voice Genie?Voice Troubleshooting system ( four-Language ) Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking. Watch Dog Timer (auto-reset system when it can not handle overclock configurations) Special design for CPU Over Temperature Protection.( OTP ) Certifications FCC, CE, BSMI Form Factor ATX ( 305*244 mm ) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
