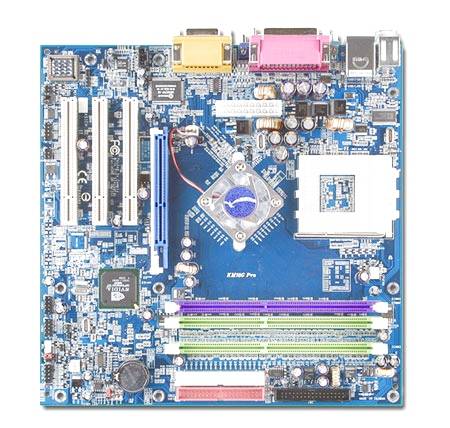

KM18G Pro - Albatron
AMD Athlon?/ Athlon?P / Athlon?P Barton /Duron?rocessor Socket 462 with FSB 200/266/333 MHz 3 DDR400/DDR333/266/200 Memory Sockets Integrated nForce2 NV18 Graphics Engine (Share memory maximum 128MB) AGP 8X , 6 channel AC 97 Audio 2 ATA133 Channels, up to 4 ATA 133 IDE Devices nForce2 MCP 10/100 Ethernet LAN 6 USB 2.0/1.1 Ports (4 ports by optional cable) Chipset with Hyper-Transport Technology TV-Out ( KM18G Pro Ver:2.0 Only) Processor AMD Athlon™ / Athlon™XP / Athlon™XP Barton /Duron™Processor FSB 200/266/333MHz Chipset North Bridge: NVIDIA nForce2 IGP South Bridge: NVIDIA nForce2 MCP I / O Chip : Winbond W83627HF Memory 3 DDR Sockets: DDR400/DDR333/266/DDR200 NON-ECC DDR SDRAM up to 3GB ( Single Channel), up to 2GB ( Dual Channel ) Expansion Slots 1 x AGP 8X/4X slot (1.5V Only) 3 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA133 channels ( up to 4 ATA 133 IDE Devices) Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header (4 ports USB cable optional) 1 x CD_IN header 1 x COM Port header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header with fan rotation detection function 1 x System fan headers with fan rotation detection function 2 x 5 pin system panel header (Intel spec) 1 x 3 pin Power LED header 1 x 4 pin Speaker header 1 x Front audio header (Intel spec) 1 x Case Open detection header 1 x Wake on LAN 1 x 4 pin TV-Out header I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1), 1 x VGA , 1 x Com(serial), 1 x Parallel, 1x Game/Line-in/ Line-out/MIC Power 20-pin ATX power connector BIOS Feature 2Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard / Mouse, Wake on LAN/RTC Timer Hardware Monitoring 2 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Adjustable CPU frequency by 1 MHz increment Special design for CPU Over Temperature Protection. ( OTP ) Certifications FCC, CE, BSMI,WHQL Form Factor Micro ATX (244mm x 244mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
