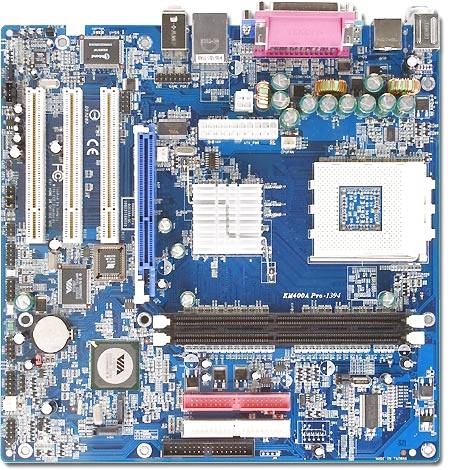

KM400A Pro-1394 - Albatron
AMD Athlon™/Athlon™XP/ Athlon™XP Barton/Duron™Processor Socket 462 with FSB 200/266/333/400MHz 2 DDR266/333/400 Memory Sockets AGP 8X , 6 channel AC 97 Audio VIA 10/100 Ethernet LAN 2 IEEE1394 Ports 2 Serial ATA150 Channels, Serial ATA RAID 0,1 2 ATA133 Channels, up to 4 ATA 133 IDE Devices 8 USB 2.0/1.1 Ports (4 ports by optional cable) Integrated Unichrome™ Graphics Engine ( Share memory maximum 64MB ) Processor AMD Athlon™/Athlon™XP/ Athlon™XP Barton/Duron™Processor FSB 200/266/333/400 MHz Chipset North Bridge : VIA KM400 South Bridge : VIA 8237 Audio Codec : VIA VT1616 LAN Chip : VIA VT6103 IEEE1394 Chip : VIA VT6307 I/O Chip : Winbond W83697HF Memory 2 * DDR sockets DDR400/333/266 NON-ECC DDR SDRAM up to 2GB Expansion Slots 1 x AGP(3.0) 8X Slot ( 1.5V Only ) 3 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA133 channels, up to 4 ATA 133 IDE devices Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header (4 ports USB cable optional) 2 x IEEE1394 header (2 ports IEEE1394 cable optional) 1 x S/PDIF out header (S/PDIF out cable optional) 1 x CPU fan header with fan rotation detection function 1 x System fan headers with fan rotation detection function 1 x10 pin system panel header (Intel spec) 1 x3 Power LED header 1 x Front audio header (Intel spec) 1 x Case Open detection header 2 x 5 pin Com port header 2 x 8 pin Game Port header I/O via Back Panel PS/2 keyboard/mouse, 4 x USB(2.0/1.1), RJ45, 1 x Com(serial), 1 x Parallel, 1x Line-in/Line-out/MIC Power 20-pin ATX power connector, 4-pin ATX 12V power connector BIOS Feature 2Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard, Wake on LAN/RTC Timer Hardware Monitoring 2 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Adjustable CPU frequency by 1 MHz increment for overclocking Watch Dog Timer (auto-reset system when it can not handle overclock configurations) Special design for CPU Over Temperature Protection.( OTP ) Certifications FCC, CE, BSMI Form Factor ATX (240mm x 240mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
