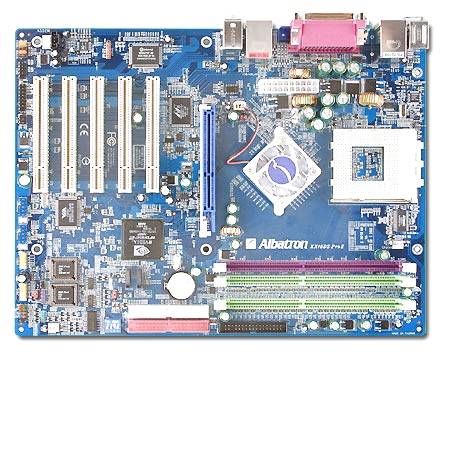

KX18DS ProII - Albatron
AMD Athlon™/ Athlon™XP / Athlon™XP Barton/ Duron™Processor Socket 462 with FSB 200/266/333/400+(by overclocking) MHz 3 DDR400/DDR333/266/200 Memory Sockets (Dual DDR400) AGP 8X , 6 channel AC 97 Audio 2 ATA133 Channels, up to 4 ATA 133 IDE Devices nForce2 MCP RAID 10/100 Ethernet LAN/ Marvell Gbits LAN 2 Serial ATA150 Channels, Serial ATA RAID 0,1,0+1 2 IEEE1394 Ports 8 USB 2.0/1.1 Ports (4 ports by optional cable) BIOS Mirror ™ Voice Genie ™ Processor AMD Athlon™/ Athlon™XP / Athlon™XP Barton/ Duron™Processor FSB 200/266/333/400 MHz Chipset North Bridge: nVIDIA nForce2 SPP (Ultra 400) South Bridge: nVIDIA nForce2 MCPS LAN Chip : LAN PHY Realtek RTL8201CL / Marvell MV8001 IEEE1394 Chip : VIA VT6307 Audio Codec: Realtek ALC650 Serial ATA Chip : nVIDIA nForce2 MCP RAID I / O Chip : Winbond W83627HF Memory 3 *DDR Sockets: DDR400/DDR333/266/DDR200 NON-ECC DDR SDRAM up to 3GB ( Single Channel) , up to 2GB ( Dual Channel ) Expansion Slots 1 x AGP 3.0 8X/4X slot (1.5V & 0.8 V Only) 5 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA133 channels, up to 4 ATA 133 IDE Devices Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header (4 ports USB cable optional) 2 x IEEE1394 header (2 ports IEEE1394 cable optional) 1 x CD_IN header 1 x COM Port header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header with fan rotation detection function 1 x System fan headers with fan rotation detection function 1 x10 pin system panel header (Intel spec) 1 x 3 pin Power LED header 1 x 4 pin Speaker header 1 x Front audio header (Intel spec) 1 x Case Open detection header 2 x 5 pin Com port header 2 x 8 pin Game Port header I/O via Back Panel PS/2 keyboard/mouse, 4 x USB(2.0/1.1), 2 x RJ45 ,1 x Com(serial), 1 x Parallel, 1x Game/Line-in/Line-out/MIC Power 20-pin ATX power connector BIOS Feature 4 Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard / Mouse, Wake on LAN/RTC Timer Hardware Monitoring 2 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Zero Jumper Design BIOS Mirror [TM]Protect BIOS by creating an original mirror image of itself Voice Genie [TM]Voice Troubleshooting system ( four-Language ) Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking Watch Dog Timer (auto-reset system when it can not handle overclock configurations) Special design for CPU Over Temperature Protection.( OTP ) Certifications FCC,CE, BSMI Form Factor ATX (244*305 mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
