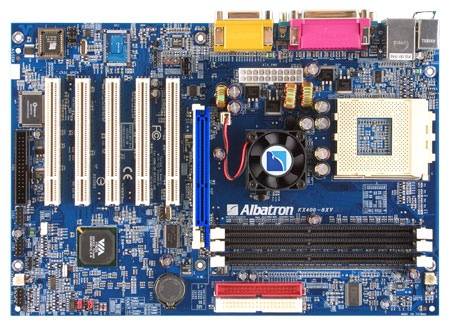

KX400-8XV - Albatron
..Specification Overview Specification Award BIOS Update Driver Manual Product News << BACK Feature AMD Athlon™/Athlon™XP/ Athlon™XP Barton /Duron™ Processor Socket 462 with FSB 200/266/333MHz 3 DDR400/333/266/200 Memory Sockets AGP 8X , 6 channel AC 97 Audio 2 ATA133 Channels, up to 4 ATA 133 IDE Devices 6 USB 2.0/1.1 Ports (4 ports by optional cable) Processor Socket 462 Athlon™/Athlon™XP/ Athlon™XP Barton /Duron™ Processor FSB 200/266/333MHz Chipset North Bridge : VIA KT400 South Bridge : VIA 8235 AC97 Audio Codec: Realtek ALC650 I/O Chip : Winbond W83697HF Memory 3 DDR sockets DDR333/266/200 NON-ECC DDR SDRAM up to 3GB Expansion Slots 1 x AGP 8X slot ( 1.5V Only ) 5 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA133 channels,up to 4 ATA 133 IDE devices Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header (4 ports by optional cable) 1 x CD_IN header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header with fan rotation detection function 1 x System fan headers with fan rotation detection function 2 x 5 pin system panel header (Intel spec) 1 x Front audio header (Intel spec) 1 x Case Open detection header I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1),2 x Com(serial), 1 x Parallel, 1x Game/Line-in/Line-out/MIC Power 20-pin ATX power connector BIOS Feature 2Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard, Wake on LAN/RTC Timer Hardware Monitoring 2 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking Watch Dog Timer (auto-reset system when it can not handle overclock configurations) Special design for CPU Over Temperature Protection.( OTP ) Certifications FCC, CE, BSMI Form Factor ATX (200mm x 293mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
