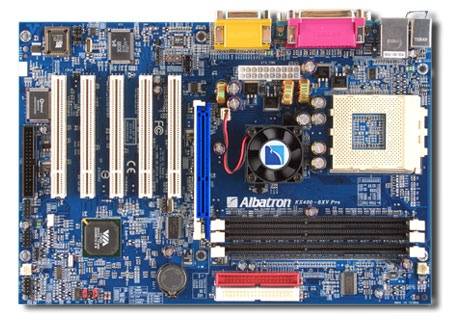

KX400-8XV Pro - Albatron
..Specification Overview Specification Award BIOS Update Driver Manual Product News << BACK Feature AMD Athlon™/Athlon™XP/Athlon™Barton/ Athlon™Duron Processor Socket 462 with FSB 200/266/333 MHz 3 DDR333/266/200/400 Memory Sockets AGP 8X , 6 channel AC 97 Audio 2 ATA133 Channels, up to 4 ATA 133 IDE Devices 3Com 10/100 Ethernet LAN 6 USB 2.0/1.1 Ports (4 ports by optional cable) Processor Socket 462 AMD Athlon™/Athlon™XP/Athlon™Barton /Athlon™Duron Processor FSB 200/266/333MHz Chipset North Bridge : VIA KT400 South Bridge : VIA 8235 AC97 Audio Codec: Realtek ALC650 LAN Chip : 3Com 3C910-A01 LAN Chip I/O Chip : Winbond W83697HF Memory 3 DDR sockets DDR400/333/266/200 NON-ECC DDR SDRAM up to 3GB Expansion Slots 1 x AGP 8X slot ( 1.5V Only ) 5 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA133 channels,up to 4 ATA 133 IDE devices Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header (4 ports by optional cable ) 1 x CD_IN header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header with fan rotation detection function 1 x System fan headers with fan rotation detection function 2 x 5 pin system panel header (Intel spec) 1 x Front audio header (Intel spec) 1 x Case Open detection header 1 x Wake on LAN I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1),RJ45, 2 x Com(serial), 1 x Parallel, 1x Game/Line-in/Line-out/MIC Power 20-pin ATX power connector BIOS Feature 2Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0,Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard, Wake on LAN/RTC Timer Hardware Monitoring 2 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking Watch Dog Timer (auto-reset system when it can not handle overclock configurations) Special design for CPU Over Temperature Protection.( OTP ) Certifications FCC, CE, BSMI, WHQL Form Factor ATX (200mm x 293mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
