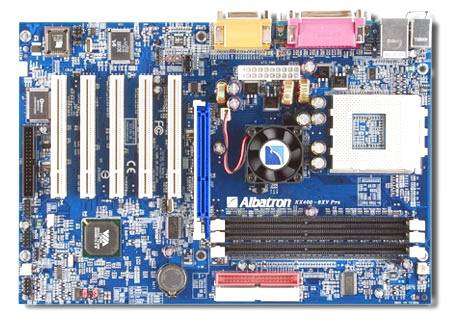

KX400-8XV Pro (V3.0) - Albatron
AMD Athlon™/Athlon™XP/ Athlon™XP Barton/Duron™Processor Socket 462 with FSB 200/266/333 MHz 3 DDR333/266//400 Memory Sockets AGP 8X , 6 channel AC 97 Audio 2 ATA133 Channels, up to 4 ATA 133 IDE Devices 3Com 10/100 Ethernet LAN 6 USB 2.0/1.1 Ports (4 ports by optional cable) Processor AMD Athlon™/Athlon™XP/ Athlon™XP Barton/Duron™Processor FSB 200/266/333 MHz Chipset North Bridge : VIA KT400A South Bridge : VIA 8235 AC97 Audio Codec : Realtek ALC655 LAN Chip : 3Com 3C920 Memory 3 * DDR sockets DDR266/333/400 NON-ECC DDR SDRAM up to 3GB Note 1: If the FSB of your CPU is 200 MHz, the memory speed supports only DDR 266 Note 2: If the FSB of your CPU is 266/333/400 MHz, the memory speed supports DDR 266/333/400 Expansion Slots 1 x AGP 8X slot ( 1.5V Only ) 5 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA133 channels, up to 4 ATA 133 IDE devices Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header(4 ports by optional cable) 1 x CD_IN header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header with fan rotation detection function 1 x System fan headers with fan rotation detection function 1 x10 pin system panel header (Intel spec) 1 x3 Power LED header 1 x Front audio header (Intel spec) 1 x Case Open detection header 1 x Wake on LAN I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1), RJ45,2 x Com(serial), 1 x Parallel, 1x Game/Line-in/Line-out/MIC Power 20-pin ATX power connector BIOS Feature 2Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard, Wake on LAN/RTC Timer Hardware Monitoring 2 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking Watch Dog Timer (auto-reset system when it can not handle overclock configurations) Special design for CPU Over Temperature Protection.( OTP ) Certifications FCC, CE, BSMI Form Factor ATX (200mm x 293mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
