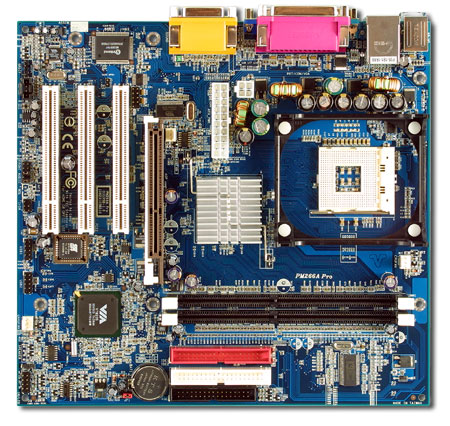

PM266A Pro - Albatron
..Specification Overview Specification Award BIOS Update Driver Manual Product News << BACK Feature Intel Pentium® 4 Processor (Celeron/Willamette/Northwood) Socket 478 with FSB 400/533MHz 2 DDR266/200 Memory Sockets 6 channel AC 97 Audio VIA 10/100 Ethernet LAN 2 ATA133 Channels, up to 4 ATA 133 IDE Devices 6 USB 2.0/1.1 Ports (4 ports by optional cable) Integrated ProSavage8 2D/3D Graphics Support Hyper-Threading Technology Processor Socket 478 Intel Pentium® 4 Processor (Celeron/Willamette/Northwood) FSB 400/533MHz Chipset North Bridge : VIA VT8751A (P4M266A Ver:CE) South Bridge : VIA VT8235 Audio Codec : VIA VT1616 LAN Chip : VIA VT6103 I/O Chip : Winbond W83697HF Memory 2 * DDR Sockets DDR266/DDR200 NON-ECC DDR SDRAM up to 2GB Note1: (If you do install DDR 333/400 memory, it will perform at DDR 266 speeds) Expansion Slots 1 x AGP(2.0) 4X slot (1.5V only) 3 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA133 channels, up to 4 ATA 133 IDE devices Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header (4 ports USB cable optional) 1 x CD_IN header 1 x COM (serial) port header (Optional COM cable) 1 x S/PDIF out header (S/PDIF out cable optional) 1 x CPU fan header with fan rotation detection function 1 x System fan headers with fan rotation detection function 2 x 5 pin system panel header (Intel spec) 1 x 3 pin Power LED header 1 x Front audio header (Intel spec) 1 x IrDA header 1 x Case Open detection header I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1), 1 x VGA , 1 x Com(serial), 1 x Parallel, 1x Game/Line-in/Lin-out/MIC Power 20-pin ATX power connector, 4-pin ATX 12V power connector BIOS Feature 2Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer Hardware Monitoring 2 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Watch Dog Timer (auto-reset system when it can not handle overclock configurations) Certifications FCC, CE, BSMI,WHQL Form Factor Micro ATX (244mm x 225mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
