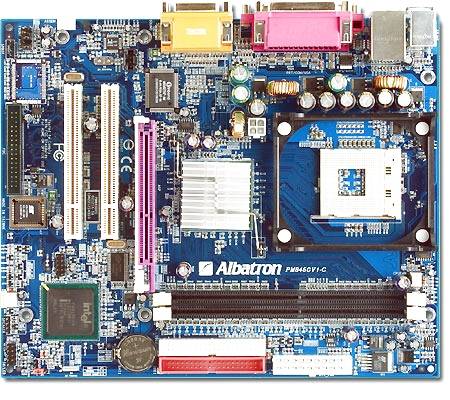

PM845GV1-C - Albatron
Intel Pentium® 4 Processor (Willamette/Northwood) Socket 478 with FSB 400/533 MHz 2 DDR200/266/333 Memory Sockets 2 channel AC 97 Audio 2 ATA100 Channels, up to 4 ATA 100 IDE Devices 4 USB 2.0/1.1 Ports (2 ports by optional cable) Integrated 3D Graphics Engine Processor Socket 478 Intel Pentium®4 Processor (Willamette/Northwood) FSB 400/533 MHz Chipset North Bridge: Intel 845GV South Bridge: Intel ICH4 AC97 Audio Codec: Realtek ALC201 I/O Chip : Winbond W83627HF Memory 2 * DDR Sockets DDR200/266/333 NON-ECC DDR SDRAM up to 2GB Expansion Slots 1 x ADD Card Slot 2 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA100 channels, up to 4 ATA 100 IDE devices Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header (2 ports by optional cable) 1 x CD_IN header 1 x COM (serial) port header (Optional COM cable) 1 x S/PDIF out header (S/PDIF out cable optional) 1 x CPU fan header with fan rotation detection function 2 x System fan headers (1 fan rotation detection function) 1 x 10 pin system panel header (Intel spec) 1 x Front audio header (Intel spec) 1 x IrDA header 1 x Case Open detection header I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1),1 x VGA ,1 x Com(serial), 1 x Parallel, 1x Game/Line-in/Line-out/MIC Power 20-pin ATX power connector, 4-pin ATX 12V power connector BIOS Feature 3Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer Hardware Monitoring 2 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Zero Jumper Design Watch Dog Timer (auto-reset system when it can not handle overclock configurations) AGP Protection (The AGP Protection can ensure the AGP card voltage to be 1.5V, to protect the mainboard and the AGP card.) Certifications FCC, CE, BSMI Form Factor Micro-ATX (244mm x 230mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
