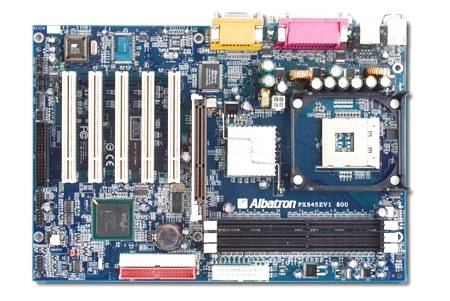

PX845EV1 Rev:800 - Albatron
Intel Pentium®4 Processor (Willamette/Northwood) Socket 478 with FSB 400/533/800 MHz (FSB 800 is by overclocking or using 200MHz Clock Frequency CPU) 3 DDR200/266/333/400 (DDR333/400 by overclocking) Memory Sockets 6 channel AC 97 Audio 2 ATA100 Channels, up to 4 ATA 100 IDE Devices 6 USB 2.0/1.1 Ports (4 ports by optional cable) Processor Socket 478 Intel Pentium® Processor (Willamette/Northwood) FSB 400/533/800 MHz (FSB 800 is by overclocking or using 200MHz Clock Frequency CPU) Chipset North Bridge : Intel 845E South Bridge : Intel ICH4 Audio Codec : Realtek ALC650 Codec I/O Chip : Winbond Smart I/O W83627HF Memory 3 *DDR Sockets DDR 200/266/333/400 (DDR333/400 by overclocking) NON-ECC DDR SDRAM up to 2GB ( DIMM1 uses 2 Banks/ DIMM2 & DIMM3 share 2 Banks ) Expansion Slots 1 x AGP 4X slot ( 1.5V only) 5 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA66/100 channels, up to 4 ATA 66/100 IDE devices Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header (4 ports by optional cable) 1 x CD_IN header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header with fan rotation detection function 2 x System fan headers with fan rotation detection function 2 x 5 pin system panel header (Intel spec) 1 x Front audio header (Intel spec) 1 x IrDA header 1 x Case Open detection header I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1), RJ45,2 x Com(serial), 1 x Parallel, 1x Game/Line-in/Line-out/MIC Power 20-pin ATX power connector, 4-pin ATX 12V power connector BIOS Feature 2Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer Hardware Monitoring 3 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Zero Jumper Design Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, V AGP, V Memory Watch Dog Timer (auto-reset system when it can not handle overclock configurations) AGP Protection (The AGP Protection can ensure the AGP card voltage to be 1.5V, to protect the mainboard and the AGP card) Certifications FCC, CE, BSMI Form Factor ATX (200mm x 294mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
