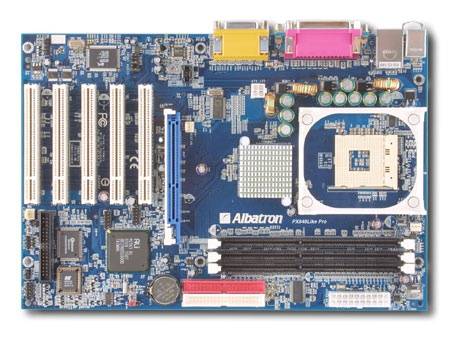

PX848LikePro - Albatron
..Specification Overview Specification Award BIOS Update Driver Manual Product News << BACK Feature Intel Pentium® 4 Processor (Northwood) Socket 478 with FSB 400/533/800 MHz 3 DDR 333/266/400 Memory Sockets 6 Channel AC97 Audio 3Com 10/100 Ethernet LAN 2 ATA133 Channels, up to 4 ATA 133 IDE Devices 6 USB 2.0/1.1 Ports (4 ports by optional cable) Processor Socket 478 Intel Pentium® 4 Processor (Northwood) FSB 400/533/800 MHz Chipset North Bridge : ALi M1683 South Bridge : ALi M1563 LAN Chip : 3Com 3C920 Audio Codec : Realtek ALC655 I/O Chip: Winbond Smart I/O W83697HF Memory 3 * DDR Sockets: DDR400/333/DDR266 NON-ECC DDR SDRAM up to 3GB Note 1: If the FSB of your CPU is 400 MHz, the memory speed supports only DDR 266. Note 2: If the FSB of your CPU is 533 MHz, the memory speed supports DDR 266/333 Note 3: If the FSB of your CPU is 800 MHz, the memory speed supports DDR 333/400 Expansion Slots 1 x AGP(3.0) 8X slot ( 1.5V & 0.8V only) 5 x PCI slots (PCI 2.2 compliant) IDE Connectors 2 ATA133 Channels, up to 4 ATA 133 IDE devices Onboard I/O Connectors 1 x Floppy Connector 3 x USB 2.0/1.1 header (6 ports by optional cable) 1 x CD_IN header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header ( 1 fan rotation detection function ) 2 x System fan headers ( 1 fan rotation detection function ) 1 x 10 pin system panel header (Intel spec) 1 x 3 pin Power LED header 1 x Front audio header (Intel spec) 1 x Case Open detection header I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1), RJ45,2 x Com(serial), 1 x Parallel, 1x Line-in/Line-out(Speaker Out)/MIC Power 20-pin ATX power connector, 4-pin ATX 12V power connector BIOS Feature 2Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer Hardware Monitoring 2 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Zero Jumper Design Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking Watch Dog Timer (auto-reset system when it can not handle overclock configurations) AGP Protection (The AGP Protection can ensure the AGP card voltage to be 1.5V, to protect the mainboard and the AGP card.) Certifications FCC, CE, BSMI,WHQL Form Factor ATX (293 *200 mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
