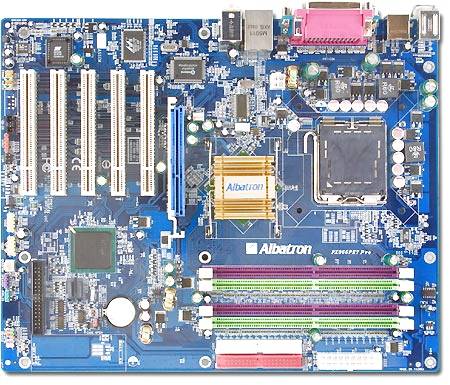

PX865PE7 Pro - Albatron
Intel Pentium®4 Processor (Prescott) Socket 775 with FSB 533/800 MHz 4 DDR266/333/400 Memory Sockets ( Dual Channel DDR400) AGP 8X, 6 Channel AC97 Audio Marvell Gbits Ethernet LAN 2 Serial ATA150 Channels, 2 ATA100 Channels, up to 4 ATA 100 IDE Devices 8 USB 2.0/1.1 Ports (4 ports by optional cable) Processor Intel Pentium®4 Processor (Prescott) FSB 533/800 MHz Chipset North Bridge : Intel 865PE South Bridge : Intel ICH5 LAN Chip : Marvell MV8001 1Gbits AC97 Audio Codec : Realtek ALC655 I/O Chip: Winbond Smart I/O W83627THF Memory 4 * DDR Sockets: DDR400/333/266 NON-ECC DDR SDRAM up to 4GB Expansion Slots 1 x AGP(3.0) 8X slot (1.5V only) 5 x PCI slots (PCI 2.3 compliant) IDE Connectors 2 ATA100 Channels, up to 4 ATA 100 IDE devices Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header (4 ports by optional cable) 1 x CD_IN header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header ( 1 fan rotation detection function ) 2 x System fan headers ( 2 fan rotation detection function ) 1 x 10 pin system panel header (Intel spec) 1 x 3 pin Power LED header 1 x Front audio header (Intel spec) 1 x IrDA header 1 x Case Open detection header I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1), RJ45,2 x Com(serial), 1 x Parallel, 1xLine-in/Line-out(Speaker Out)/MIC Power 20-pin ATX power connector, 4-pin ATX 12V power connector BIOS Feature 3Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer Hardware Monitoring 3 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Zero Jumper Design Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking Watch Dog Timer (auto-reset system when it can not handle overclock configurations) AGP Protection (The AGP Protection can ensure the AGP card voltage to be 1.5V, to protect the mainboard and the AGP card ) Certifications FCC, CE, BSMI Form Factor ATX (244mm x 305mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
