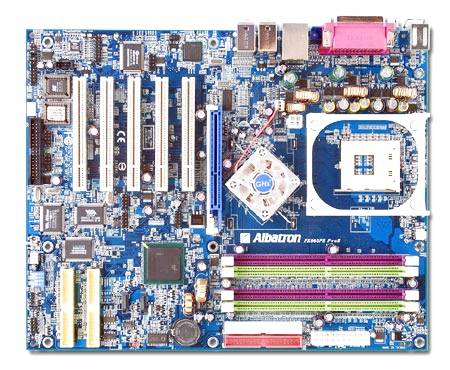

PX865PE PRO II - Albatron
Intel Pentium® 4 Processor (Northwood/Prescott) Socket 478 with FSB 400/533/800/1200(by overclocking ) MHz ( FSB1.2G Hz + setting available by overclocking ) 4 DDR400/333/266 Memory Sockets ( Dual Channel DDR400) Built-in VIA Envy 24PT with 8 channel Audio Support (Bundle SPDIF2 Card Optional) Intel 1Gbits LAN (CSA Port) 2 Serial ATA150 Channels, Intel Serial ATA RAID 0 Promise RAID 0,1/ATA133 2 IEEE1394a Ports 2 ATA100 Channels, up to 4 ATA 100 IDE Devices 8 USB 2.0/1.1 Ports (6 ports by optional cable) BIOS Mirror ™ Voice Genie™ Processor Socket 478 Intel Pentium® 4 Processor (Northwood/Prescott) FSB 400/533/800/1200 MHz ( FSB1.2G Hz setting available by overclocking ) Chipset North Bridge : Intel 865PE South Bridge : Intel ICH5R LAN Chip : Intel 82547EI ET LAN chip (CAS Port) IEEE1394 Chip : VIA VT6307 Audio Chip : VIA VT1720 Evny 24PT I/O Chip: Winbond Smart I/O W83627HF Promise Chip: Promise PDC20276 Controller Memory 4 * DDR Sockets: DDR400/333/DDR266 NON-ECC DDR SDRAM up to 4GB Note 1: If the FSB of your CPU is 400 MHz, the memory speed supports only DDR 266. Note 2: If the FSB of your CPU is 533 MHz, the memory speed supports DDR 266/333 Note 3: If the FSB of your CPU is 800 MHz, the memory speed supports DDR 266/333/400 Expansion Slots 1 x AGP(3.0) 8X slot (1.5V only) 5 x PCI slots (PCI 2.3 compliant) IDE Connectors 2 ATA100/66 Channels, up to 4 ATA 100 IDE devices Promise ATA133 Channel (Not supporting CD-ROM and ATAPI devices), Promise RAID 0,1/ ATA133 Onboard I/O Connectors 1 x Floppy Connector 3 x USB 2.0/1.1 header (6 ports by optional cable) 2 x IEEE1394 header (2 ports IEEE1394 cable optional) 1 x CD_IN header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header ( 1 fan rotation detection function ) 2 x System fan headers ( 2 fan rotation detection function ) 2 x 5pin system panel header (Intel spec) 1 x 3 pin Power LED header 1 x Front audio header (Intel spec) 1 x IrDA header 1 x Case Open detection header 2 x 5 pin Com port header 2 x 8 pin Game Port header I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1), RJ45,1 x Com(serial), 1 x Parallel, 1x Line-in/Line-out(Speaker Out)/MIC/SUR_CEN/SUR/R:WOF,L:CEN Power 20-pin ATX power connector, 4-pin ATX 12V power connector BIOS Feature 4Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, GreenSuspend to RAM (S3), Suspend to Disk (S4)Wake on keyboard/mouse, Wake on LAN/RTC Timer Hardware Monitoring 3FAN sensors, CPU/System voltages and temperature monitoring Special Feature Zero Jumper Design BIOS Mirror ™ Protect BIOS by creating an original mirror image of itself Voice Genie™ Voice Troubleshooting system ( four-Language ) Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking Watch Dog Timer (auto-reset system when it can not handle overclock configurations) AGP Protection (The AGP Protection can ensure the AGP card voltage to be 1.5V, to protect the mainboard and the AGP card.) Certifications FCC, CE, BSMI Form Factor ATX (244mm x 305mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
