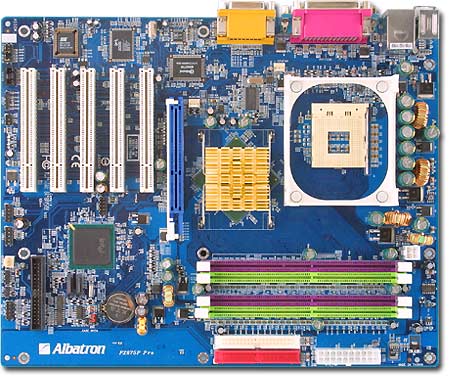

PX875P Pro - Albatron
Intel Pentium® 4 Processor (Northwood/Prescott) Socket 478 with FSB 400/533/800/1200+( by overclocking) MHz ( FSB1.2G Hz + setting available by overclocking ) 4 DDR266/333/400 Memory Sockets ( Dual Channel DDR400) 6 Channel AC97 Audio 3Com 10/100 Ethernet LAN 2 Serial ATA150 Channels, 2 ATA100 Channels, up to 4 ATA 100 IDE Devices 8 USB 2.0/1.1 Ports (6 ports by optional cable) Processor Socket 478 Intel Pentium® 4 Processor (Northwood/Prescott) FSB 400/533/800 MHz( FSB1.2G Hz + setting available by overclocking ) Chipset North Bridge : Intel 875P South Bridge : Intel ICH5 LAN Chip : 3Com 3C920 Audio Codec : Realtek ALC655 I/O Chip: Winbond Smart I/O W83627THF Memory 4 * DDR Sockets: DDR400/333/DDR266 ECC/NON-ECC DDR SDRAM up to 4GB Note 1: If the FSB of your CPU is 400 MHz, the memory speed supports only DDR 266. Note 2: If the FSB of your CPU is 533 MHz, the memory speed supports DDR 266/333 Note 3: If the FSB of your CPU is 800 MHz, the memory speed supports DDR 266/333/400 Expansion Slots 1 x AGP(3.0) 8X slot (1.5V only) 5 x PCI slots (PCI 2.3 compliant) IDE Connectors 2 ATA100/66 Channels, up to 4 ATA 100 IDE devices Onboard I/O Connectors 1 x Floppy Connector 3 x USB 2.0/1.1 header (6 ports by optional cable) 1 x CD_IN header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header ( 1 fan rotation detection function ) 2 x System fan headers ( 2 fan rotation detection function ) 1 x 10 pin system panel header (Intel spec) 1 x 3 pin Power LED header 1 x Front audio header (Intel spec) 1 x IrDA header 1 x Case Open detection header I/O via Back Panel PS/2 keyboard/mouse, 2 x USB(2.0/1.1), RJ45,2 x Com(serial), 1 x Parallel, 1xLine-in/Line-out(Speaker Out)/MIC Power 20-pin ATX power connector, 4-pin ATX 12V power connector BIOS Feature 3Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer Hardware Monitoring 3 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Zero Jumper Design Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking Watch Dog Timer (auto-reset system when it can not handle overclock configurations) AGP Protection (The AGP Protection can ensure the AGP card voltage to be 1.5V, to protect the mainboard and the AGP card ) Certifications FCC, CE, BSMI Form Factor ATX (244mm x 305mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
