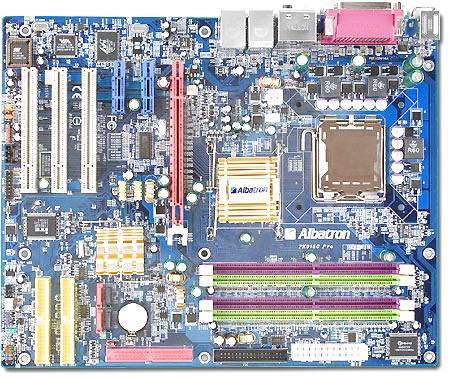

PX915G Pro - Albatron
Intel PentiumR4 Processor (Prescott) Socket 775 with FSB 533/800 MHz 4 DDR 333/400 Memory Sockets ( Dual Channel) 1*PCI Express x 16, 2*PCI Express x 1, 3*PCI Slots 8 Channel HD Audio,Marvel l Gbits Ethernet LAN & VIA 10/100 Ethernet LAN 4 Serial ATA150 Channels, IDE RAID 0,1,0+1/ATA133, Integrated 3D Graphics Engine (Share memory maximum 8 MB) 8 USB 2.0/1.1 Ports (4 ports by optional cable) Processor Socket 775 Intel PentiumR4 Processor (Prescott) FSB 533/800 MHz Chipset North Bridge : Intel 915G (Grantsdale G) South Bridge : Intel ICH6 IDE RAID Chip: ITE IT8212F LAN Chip : Marvell MV8001 1Gbits /VIA VT6105 10/100 Ethernet LAN HD Audio Codec : Realtek ALC880 I/O Chip: Winbond Smart I/O W83627THF Memory 4 * DDR Sockets: DDR333/400 NON-ECC DDR SDRAM up to 4GB Expansion Slots 1 x PCI Express x 16 2 x PCI Express x 1 3 x PCI slots (PCI 2.3 compliant) IDE Connectors 1* ATA100 Channel, up to 2 ATA 100 IDE devices 2* ATA133 Channels, up to 4 ATA 133 IDE devices Onboard I/O Connectors 1 x Floppy Connector 2 x USB 2.0/1.1 header (4 ports by optional cable) 1 x CD_IN header 1 x S/PDIF in/out header (S/PDIF in/out cable optional) 1 x CPU fan header ( 1 fan rotation detection function ) 2 x System fan headers ( 2 fan rotation detection function ) 1 x 10 pin system panel header (Intel spec) 1 x 3 pin Power LED header 1 x Front audio header (Intel spec) 1 x IrDA header 1 x Case Open detection header I/O via Back Panel PS/2 keyboard/mouse, 4 x USB(2.0/1.1), 2x RJ45 ,1 x Com(serial), 1 x Parallel, 1xLine-in/Line-out(Speaker Out)/MIC/SUR_CEN/SUR/R:WOF,L:CEN Power 24-pin ATX power connector, 4-pin ATX 12V power connector BIOS Feature 4Mb Flash EEPROM Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer Hardware Monitoring 3 FAN sensors, CPU/System voltages and temperature monitoring Special Feature Zero Jumper Design Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking Watch Dog Timer (auto-reset system when it can not handle overclock configurations) Certifications FCC, CE, BSMI Form Factor ATX (244mm x 305mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Albatron Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
