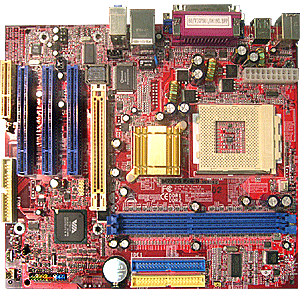

M7VIG Pro-D - AMPTRON
NB: VIA KM266(VT8375), SB: VT8235 Chipset Supports AMD Duron / Athlon / AthlonXP processors Supports 266/200MHz Front-Side Bus 2 DDR266 support, up to 2GB of main memory Integrated S3 ProSavage 8 up to 32MB shared video memory Supports 6 USB 2.0 (4 x rear, 2 x front) Provides a AGP 4X graphics port CNR slot Built-in hardware monitoring IC Specification Main Chipset NB: VIA KM266(VT8375), SB: VT8235 Chipset Socket-A: AMD K7 AthlonXP / Athlon / Duron processor @266/200MHz FSB Memory Support Supports up to 2 DDR devices (2 x 184-pin DDR DIMM) Supports 200/266MHz DDR Maximum installed memory is 2GB VGA Integrated S3 ProSavage 8 up to 32MB shared video memory Expansion Slots One CNR slot for a special Communication Network Riser card One AGP 4X slot for AGP 2.0-compliant interface Three 32-bit PCI slots for PCI 2.2 compliant bus interface Enhanced IDE Controller Support 4 EIDE disk drives, Supports PIO Mode 4 Master Mode and Ultra DMA 33/66/100/133 Bus Master Mode Built-in Ethernet LAN VIA VT6103 USB 2.0 6 USB2.0 support (4 x Rear, 2 x Front) Compliant with Universal Serial Bus Specification Revision 2.0 Compliant with Intel's Enhanced Host Controller Interface Specification Revision 0.95 Compliant with Universal Host Controller Interface Specification Revision 1.1 PCI multi-function device consists of two UHCI Host Controller cores for full-/low-speed signaling and one EHCI Host Controller core for high-speed signaling Root hub consists 4 downstream facing ports with integrated physical layer transceivers shared by UHCI and EHCI Host Controller Support PCI-Bus Power Management Interface Specification release 1.1 CNR Slot Communication Network Riser slot supports 56K V.90 HSP CNR FAX/Modem module Power Supply and Power Management ATX power connector ACPI and legacy PMU support Supports Suspend switch, keyboard power on/off Supports Wake on LAN Sound System Chip: VIA VT1612A Compliant with AC’97 specifications Supports 2 channels Onboard I/O Ports Rear side: 1 SPP, EPP & ECP Parallel Port 1 16550 Fast Serial Ports & 1 VGA Port 1 Audio port in vertical position 1 LAN jack 4 USB2.0 Ports PS/2 mouse & PS/2 keyboard Front side: 1 Floppy port supports 2FDDs 2 USB2.0 ports 1 front audio header Hardware Monitoring Built-in hardware monitoring for CPU & system temperature, fan speeds and main board voltages Bundled Software Support Warpspeeder, 9th Touch, FLASHER and StudioFUN Offers the highest performance for Window 98 SE, Windows 2000, Window Me, Windows XP Package Contents M7VIG Pro-D motherboard HDD Cable x 1 FDD Cable x 1 User’s manual Setup Drivers CD Dimensions Micro ATX form factor 9 5/8" X 8 5/8" CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
