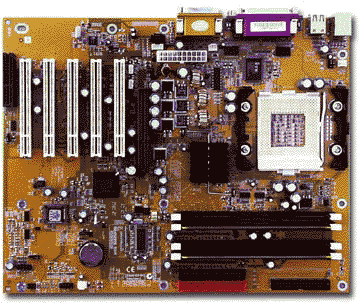

P4-900AR - AMPTRON
Intel® Tehama 850 Chipset Supports Intel® Pentium 4 processors Supports 400MHz Front-Side Bus Direct Rambus Channel memory support Supports up to 2GB of main memory Provides a AGP 4X graphics port CNR slot for Modem module Built-in hardware monitoring IC AC97 Audio codec is compliant w/ AC97 2.1 spec. 2MB AMI BIOS Flash ROM, Automatic CPU and board configuration. Specifications Jumpers Main Chipset Tehama 850 North bridge and Intel 82801BA (ICH2) South Bridge Supports Intel® Pentium 4 processors Supports a maximum memory bandwidth of 3.2 GB/s Supports 400MHz Front-Side BUS speeds Socket 423 motherboard Memory Support Rambus DRAM Sockets support Four 184-pin 2.5V RDRAM memory modules Maximum installed memory is 2GB, supports by PC800/PC600 RIMM Slot 1 RIMM Slot 2 RIMM Slot 3 RIMM Slot 4 RDRAM C-RIMM RDRAM C-RIMM C-RIMM RDRAM C-RIMM RDRAM RDRAM RDRAM RDRAM RDRAM * Note: You can only install the memory modules in pairs; therefore, you must install at least two RIMM modules. The dummy Rambus DRAM modules (C-RIMM) must be inserted in unpopulated slots. Only the above memory configurations are possible: Expansion Slots One CNR slot for a special Communication Network Riser card One AGP 2.0 compliant 4X AGP slot Four 32-bit PCI slots for PCI 2.2 compliant bus interface Enhanced IDE Controller Primary and Secondary IDE channels Supports PIO (programmable input/output) modes 0 - 4 Supports Multiword DMA modes Supports UltraDMA 33/66/100 and BUS mastering CNR Slot Communication Network Riser slot supports 56K V.90 HSP CNR FAX/Modem module Power Supply and Power Management ATX power connector ACPI and legacy PMU support Supports Suspend switch, keyboard power on/off Supports Wake on LAN, Wake on Ring, and Wake on Alarm Onboard Sound System RealTek ALC200 chipset AC97 2.1 specification compliant Support 18-bit ADC (Analog Digital Converter) and DAC (Digital analog Converter) as well as 18-bit stereo full-duplex codec Onboard I/O Ports Provides PC99 Color Connectors for easy identification of peripheral device Floppy disk controller with 1Mb/s transfer rate Two 16550 UART fast serial ports One MIDI/game port One EPP and ECP parallel port Two USB ports and two back-panel USB headers providing four extra ports support PS/2 keyboard and mouse ports One IrDA Header Hardware Monitoring Built-in hardware monitoring for CPU & system temperature, fan speeds and main board voltages Onboard Flash ROM (BIOS) AMI 2MB BIOS flash ROM Power management Wake-up alarms CPU parameters and memory timing CPU and memory timing Package Contents One mainboard User's manual One diskette drive ribbon cable and bracket One auto-install software support CD Two dummy Rambus DRAM modules (already inserted in RIMM slots) Retention modules (already mounted on the board) Two CPU retention brackets One IDE drive ribbon cable and bracket Dimensions ATX form factor 12" x 8.5" (30.5cm x 24.4cm) 6 layer PCB CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
