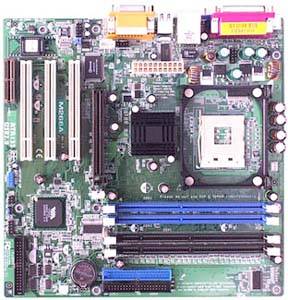

P4-M266A - AMPTRON
VIA® VT8751(P4M266A) NB + VT8235 SB Chipset Supports Intel® Pentium 4 processors Supports 533MHz Front-Side Bus 2 DDR266 & 2 SDRAM memory support Supports up to 2GB of main memory 6 USB v.2.0 Supported Provides a AGP 4X graphics port Integrated Video with VIA S3's Savage8 graphics accelerator Supports UltraDMA 66/100/133 AMR slot for Modem module On board 10BaseT/100BaseTX LAN 4 default USB 2.0 ports at back panel Specifications Main Chipset VIA VT8751(P4M266A) Northbridge, VT8235 Southbridge chipset Supports Intel® Pentium 4 processors Supports 533MHz Front-Side Bus speeds Socket 478 motherboard Note: Will not support Prescott Processor 2.4GHz 533MHz L2-1M 478-Pin Memory Support 2 DDR266 sockets & 2 SDRAM sockets support (can't be used at the same time) Maximum installed memory is 2GB Built-in Graphics System P4M266A integrates S3's Savage8 graphics accelerator Supports 2D, 3D graphic and DVD video acceleration Maximum shared memory size is 32MB VGA AGP 4X slot Compliant most AGP 2.0 and PCI 2.2 specification USB 2.0 Compliant with Universal Serial Bus Specification Revision 2.0 Compliant with Intel's Enhanced Host Controller Interface Specification Revision 0.95 Compliant with Universal Host Controller Interface Specification Revision 1.1 PCI multi-function device consists of two UHCI HOST Controller cores for full-/low-speed signaling and one EHCI Host Controller core for high-speed signaling Root hub consists 4 downstream facing ports with integrated physical layer transceivers shared by UHCI and EHCI Host controller Support PCI-Bus Power Management Interface Specification release 1.1 Legacy support for all downstream facing ports Expansion Slots One AMR slot for a special Communication Network Riser card One AGP 2.0 compliant 4X AGP slot Three 32-bit PCI slots capable of Ultra DAM bus mastering Enhanced IDE Controller Primary and Secondary IDE channels Supports PIO (programmable input/output) modes 0 -4 Supports Multiword DMA modes Supports UltraDMA 66/100/133 and BUS mastering AMR Slot Communication Network Riser slot supports 56K V.90 HSP AMR FAX/Modem module AC'97 Audio Codec: AC97 2.1 specification compliant Two Audio Jacks-Line-out, Line-In and Microphone-In Sound Blaster, Sound Blaster Pro Compatible Onboard LAN Built-in 10 BaseT/100BaseTX Ethernet LAN VT8235 integrates Fast Ethernet MAC and VT6013 LAN PHY in compliance with IEEE802.3u 100BASE-TX, 10Base-T and ANSI X3.263 TP-PMD standards In compliance with ACPI 1.0 and the Network Device Class Power Management 1.0 High Performance achieved by 100Mbps clock generator and data recovery circuit for 100Mbps receiver Onboard I/O Ports One VGA port One MIDI/Game port One Serial port One parallel port Six USB 2.0 ports (4 back-panel default ports, onboard USB headers providing 2 extra ports: header ) PS/2 keyboard and mouse ports Audio jacks for microphone, line-in and line-out BIOS Firmware 2MB AMI BIOS Flash ROM, Power Management, CPU parameters and memory timing Software Adobe Acrobat Reader V5.0 Dimensions Micro ATX form factor 9 3/4" x 9 3/4" (244 mm x 244mm) Package Contents P4-M266A Mainboard User's manual 1 UDMA/66 IDE Cable Driver CD V1.0 Floppy drive ribbon cables AMR Fax/Modem card (Optional) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
