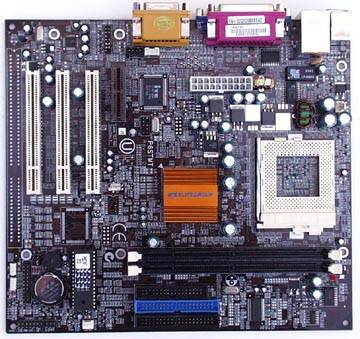

P6STMT - AMPTRON
Support for Intel FC-PGA Pentium III, FC-PGA Celeron, Tualatin and VIA C3 processors Supports up to 1GB of memory in two DIMM slots Supports BUS speeds of 66, 100 & 133MHz Built-in SiS 7018 Sound System Onboard LAN supports 10BaseT/100BaseTX Ethernet LAN AMR slot supports AMR 56k V.90 modem module Integrated hardware monitoring circuitry ATX form-factoR Processor Support Supports Socket-370 Intel FC-PGA Pentium III, FC-PGA Celeron, Tualatin and VIA C3 processors Supports BUS speeds of 66/100 & 133MHz Plug-and-Play BIOS automatically configures the processor for near-jumper-less setup Main Chipset SiS630ET Chipset Integrated Graphic System Integrated AGP 4X controller AGP 2.0 compliant Supports a graphic window size up to 256MB Memory Support Supports both ECC and non-ECC 168-pin 3.3v SDRAM memory modules Supports PC-66, PC-100 and PC-133 memory modules Supports both Standard SDRAM and Registered SDRAM Supports a maximum of 1GB of Registered SDRAM Expansion Slots Three 32-bit PCI v2.1 compliant expansion slots One AMR slot Onboard IDE Channels Primary and Secondary PCI IDE channels Support for PIO (programmable Input Output) modes Support for BUS mastering and UltraDMA 33/66 modes Built-in Sound System Built-in SiS 7018 Sound System AC'97 Audio codec is compliant with the AC' 97 2.1 specification Supports 18-bit ADC (Analog Digital Converter) and DAC (Digital Analog Converter) resolution as well as 18-bit stereo full-duplex codec with independent and variable sampling rates. Onboard LAN Built-in 10 BaseT/100BaseTX Ethernet LAN SiS900 Embedded Fast Ethernet MAC and onboard LAN PHY compliant with IEEE802.3u In compliance with ACPI 1.0 and the Network Device Class Power Management 1.0 High Performance achieved by 100Mbps clock generator and data recovery circuit for 100Mbps receiver AMR Slot Audio/Modem Riser slot supports 56K V.90 HSP AMR FAX/Modem module Integrated Hardware Monitor Built-in hardware monitoring for CPU temperature and fan speeds. Supports AMI's Desktop Client Manager (ADCM) Onboard I/O Ports Provides PC99 Color Connectors for easy identification of peripheral device Floppy drive port with 1Mb/s transfer rate One serial port with 16550-compatible fast UART. One parallel port with support for EPP and ECP modes Audio jacks for microphone, line-in and line-out One VGA port One MIDI/Game port Two USB ports & two PS/2 ports. Power Supply and Power Management Provides ATX power connector for advanced power management. Support for Power button/Suspend switch and keyboard power on/off (requires a Win98 compatible power keyboard) Supports Wake on LAN, Wake on Modem Hardware Monitoring Built-in hardware monitoring for CPU temperature and fan speeds Supports AMI's Desktop Client Manager (ADCM) Onboard Flash ROM Award 2Mb Flash ROM Supports plug and play configuration of peripheral devices and expansion cards Supports for ACPI rev.1.0 specification Bundled Software Recovery Genius 21st V5.0 provides the function to recover, reserve and transfer hard disk data PC-Cillin 2000 provides automatic virus protection under windows 95/98/NT/2000 CD Ghost is the software stimulating a real CD-ROM to perform equivalent function MediaRing Talk provides PC to PC base internet phone calls. WinDVD 2000 is a DVD playback application (optional) Package Contents Motherboard User's manual UltraDMA /66 IDE cable Floppy drive cable System Support (Drivers) CD V7.1S AMR Modem module (Optional) Dimensions 8 5/8 in x 9 3/4 in (220mm x 244mm) MicroATX form-factor JUMPER SETTINGS AND HEADER PIN-OUT(s): JUMPER PIN (s) FUNCTIONS JUMPER PIN (s) FUNCTIONS JP1 Short 1-2: Clear Clear CMOS (3 pin) JP3: Short 1-2:Enable BIOS flash protection (2 pin) Short 2-3: Normal Open 1-2: Disable CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
