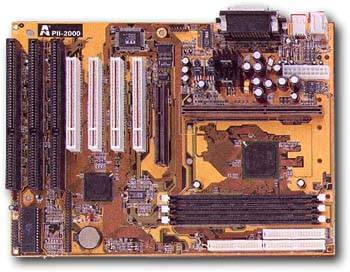

PII-2000 - AMPTRON
Intel i440LX AGPset chipset Supports Intel Pentium II processors running at 66MHz Supports up to 384MB of main memory One v1.0 AGP graphics port Supports UltraDMA/33 Four 32-bit PCI local BUS slots and three 8/16-bit ISA local BUS slots Integrated hardware monitoring IC Integrate antivirus software to protect your system as soon as it's powered on ATX form factor with a 20-pin ATX power connector -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset Intel i440LX AGPset chipset Supports Intel Pentium II processors running at 66MHz clock speed. "Plug and Play" CPU support Memory Three 168-pin DIMM slots for EDO and SDRAM memory modules up to 128MB each for a total of 384MB Supports 512KB or 256KB Pipeline Burst L2 cache memory in Pentium II processors Enhanced IDE Controller PCI BUS master IDE controller supports PIO modes 0 - 4 Supports UltraDMA/33 Supports 2.88MB, Iomega ZIP and LS-120 drives Onboard PCI BUS Master IDE interface supports up to 4 devices up to 8.4GB Expansion Slots Four 32-bit local BUS PCI slots and three 8/16-bit local BUS ISA slots Supports 1 v1.0 AGP graphics port Power Supply and Power Features Provideds 20-pin ATX power connector Supports Suspend Mode and Software Power Off JUMPER SETTINGS AND HEADER PIN-OUTS JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTIONS PW1 - ATX Power Conn. 1 3.3v DC J1 - (Bottom) PS/2 Keyboard 1 Ground 2 3.3v DC 2 Keyboard Data 3 Ground 3 Not Used 4 +5v DC 4 +5v DC 5 Ground 5 Keyboard Clock 6 +5v DC 6 Not Used 7 Ground 8 Power OK J1 - (Top) PS/2 Mouse 1 +5v DC 9 5v SB 2 (-) Data 10 +12v DC 3 (+) Data 11 3.3v DC 4 Ground 12 -12v DC 13 Ground JP1 - DIMM Voltage (A/B) 1-2 5v DC 14 PS-ON 2-3 3.3v DC 15 Ground 16 Ground JP2 - Flash ROM Voltage 1-2 12v DC 17 Ground 2-3 5v DC 18 -5v DC 19 +5v DC JP3 - Clear CMOS 1-2 Normal Operation 20 +5v DC 2-3 Clear CMOS J3 - LM78 Upgrade Kit J4 - Keylock & Power LED 2 LED Output 4 Not Used J4 - Speaker Connector 1 Data Output 6 Ground 3 Not Used 8 Keylock 5 Ground 10 Ground 7 +5v J4 - Turbo LED 13 (+) Anode J4 - HDD LED 15 +5v DC 14 (-) Ground 16 (-) Active low J4 - Reset Switch (17, 18) Open Normal Operation J4 - Power Button Over-ride 19 +5v DC Closed System Reset 20 Ground J5 - Wake On LAN Conn. 1 5v SB J8 - Power Supply Fan 1 to LM78 2 Ground 2 +12v DC 3 Wake Up 3 Ground IR - Infrafed Connector 1 IRRXL J6 (FAN3) - Chassis Fan 2 Ground 3 IRTX J7 (FAN2) - CPU Fan 4 +5v DC 5 IRRXH USB1 - (2) USB Conn. 1 +5v DC 6 +5v 2 (-) Data 7 Ground 3 (+) Data 4 Ground CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
