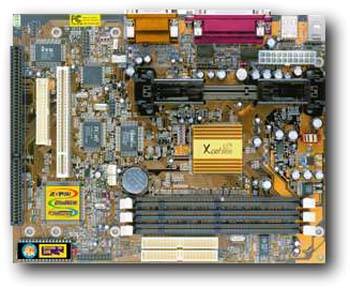

PII-3741LMR - AMPTRON
SiS620 Main/Video chipset. Supports processors running at BUS speeds of 66/100MHz Supports up to 768 MB or SDRAM using three 168-pin DIMMs. 2 PCI, 1 ISA, 2 USB, 1 Serial, 1 Parallel and 1 MIDI port. Provides AT/ATX power management features including 'Wake on LAN', 'Wake on RTC', 'Wake on Ring' and 'Keyboard Power On/Off'. SiS620 Built-in 64-bit 3D v1.0 AGP Graphics accelerator which shares up to 8 MB of main system memory to act as a frame buffer. Built-in C-Media CMI8738 3D surround sound system with 24-bit digital audio interface and 44 kHz sample rate. Built-in Davicom 9102 fast PCI 10/100 Base-T Ethernet adapter Built-in hardware monitoring circuitry for monitoring cooling FAN RPMs, CPU temperature and operating voltages. Built-in PCTel HSP56 MicroModem with voice features. Supports V.90, V.34, V.32bis, V.32, V.22, and V.22bis protocols. -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Slot-1 Processor Support Pentium-III support for 450-650MHz processors Pentium-II support for 233-450MHz processors SEPP Celeron support for 266-533MHz processors Supports 66 and 100MHz Front Side BUS (FSB) All CPU configuration is done by the BIOS Memory Support Three DIMM slots for 3V 168-pin SDRAM module are provided. Support for 66, 100 and 133MHz BUS memory. Maximum installed memory can be 3 x 256MB for a total of 768MB. Expansion Slots (1) 32-bit PCI slots (1) 8/16-bit ISA slot Onboard IDE Channels Primary and Secondary PCI IDE channels Support for PIO (programmable Input Output) modes Support for BUS mastering and UltraDMA 33/66 modes. Power Supply and Power Management Provides ATX power connector for advanced power management. Support for Power button/Suspend switch and keyboard power on/off (requires a Win98 compatible power keyboard) Built-in Graphics System Onboard 64-bit 3D AGP graphics accelerator Complies with AGP v1.0 with 66/100/133MHz operation. Shared memory architecture allows for a maximum of 8MB main memory to act as a frame buffer. Supports high resolutions up to 1600 x 1200 pixels. Sound System Meets PC98 audio specifications Full duplex playback and recording with built-in 16-bit CODEC. HRTF 3D professional audio supports both Direct Sound 3D and A3d compatible interfaces plus support for (4) speaker output. Drivers support Windows 3.1/95/98/NT 4.0/2000 and Linux Built-in 32 ohm earphone buffer and 3D surround sound. Provides MPU-401 Game/MIDI port and legacy Sound Blaster 16 support. Downloadable Wave-table Synthesizer supports Direct Music SPDIF Digital audio interface with 24-bit stereo, 44KHz sampling rate and measured 120 dB audio quality. Stereo Mixer supports analog mixing from CD-Audio, Line-In, and digital mixing from voice, FM/Wave-table and digital CD-Audio Onboard I/O Ports Provides PC99 Color Connectors for easy identification of peripheral devices. Floppy drive port with 1Mb/s transfer rate. One serial port with 16550-compatible fast UART. One parallel port with support for EPP and ECP modes. Two USB ports & two PS/2 ports. One Infrared connector. Hardware Monitoring Built-in hardware monitoring for CPU temperature and fan speeds. Supports AMI's Desktop Client Manager (ADCM) Built-in LAN Adapter Onboard 10Base-T/100Base-TX LAN Adapter. LAN controller integrates fast PCI Ethernet MAC and PHY compliant with IEEE802.3u 100Base-TX, 10Base-T and ANSI X3212 TP-PMD standard. Compliant with ACPI 1.0 and the Network Device Class Power Management 1.0 standard. High performance provided by 100Mbps clock generator and data recovery circuit for 100Mbps receiver. FAX/Modem DAA Module PCTel HSP56 MicroModem DAA module Supports V.90,V.34,V.34bis,V.32, V.22, V.22bis and V.22 protocols. Supports auto fallback and MNP 5, V.42bis data compression with 115200 compatible virtual UART. Requires a minimum of 16MB of dedicated memory. Onboard Flash ROM Supports plug and play configuration of peripheral devices and expansion cards. Built-in virus protection provided by Trend's ChipAway AntiVirus which ensures that the entire boot process is virus protected. Bundled Software AMI Desktop Client Manager (ADCM) supports hardware monitoring for stand-alone systems or a network workstation. PC-Cillin provides automatic virus protection under Windows 95/98 Super Voice FAX/Modem and voice software which allows for data and voice transfer. MediaRing Talk provides PC to PC base internet phone calls. Gamut provides professional audio applications including MP3 encoding and decoding. WordPerfect Suit 8 is a Windows version of the popular office application. Dimensions Micro ATX form factor (24.4cm x 22cm) Package Contents Motherboard User's Guide IDE cables Floppy drive cables V.90 FAX/Modem DAA module 10Base-T/100Base-TX network adapter extension bracket Software support CD. Optional Accessories Fiberoptic SPDIF Digital Audio interface CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
