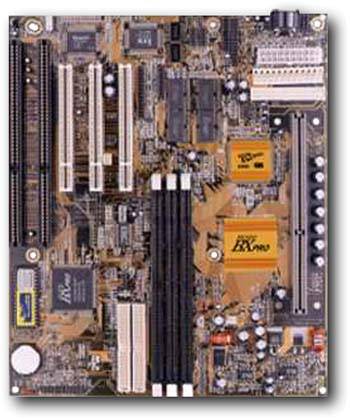

PII-3747 v1.5 - AMPTRON
Intel BX Two chipset Supports Pentium II and Intel Celeron CPUs Supports 66 & 100MHz clock speeds Supports up to 384MB or main memory Built-in SiS 6326 high performance 64-bit 3D AGP graphics accelerator 8MB video frame buffer Supports ACPI and legacy PMU Provides AT and ATX power connectors Built-in C-Media 3D positional sound system Three 32-bit local BUS PCI slots and two 8/16-bit local BUS ISA slots Optional ATX form card includes PS/2 mouse port, (2) USB ports and an IR connector -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset Intel BX Two chipset Supports Pentium II and Intel Celeron processors Supports clock speeds of 66 & 100MHz Memory Provides (3) DIMM slots for EDO DRAM, FPM DRAM and SDRAM Supports up to 384MB or main memory Supports EDO DRAM, Fast Page Mode (FPM) DRAM and SDRAM Supports PC-100 memory standards Video Chipset Built-in SiS 6326 high performance 64-bit 3D AGP graphics accelerator 8MB frame buffer Expansion Slots (3) 32-bit local BUS PCI slots and (2) 8/16-bit ISA local BUS slots IDE interface supports up to four IDE devices IDE interface supports UltraDMA/33 Multi-I/O Chipset Onboard super multi-I/O chip supports (2) 16550 UART fast serial ports, (1) SPP, EPP/ECP parallel port and (1) IR port. Floppy disk controller supports up to two devices and has a maximum transfer rate of 1MB/s Power Supply and Power Management 20-pin ATX power connector and 12-pin AT power connector for versatility Supports ACPI and legacy PMU power management features Supports Suspend Mode, Software Shutdown, Wake on Alarm, Wake on LAN and Wake on Ring Onboard Sound System Built-in C-Media CMI8330 3D positional sound chipset Fully PC'98 compliant Supports HRTF positional audio and Direct Sound 3D Provides Sony Philips Digital-Audio Interface (SPDIF) Input/Output JUMPER SETTINGS AND HEADER PIN-OUTS: JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION J8 - Keylock & Power LED 2 LED Output J8 - Speaker Connector 1 Data Output 4 Not Used 3 Not Used 6 Ground 5 Ground 8 Keylock 7 +5v DC 10 Ground J8 - Reset Switch (17, 18) Open Normal Operation J8 - HDD LED 15 +5v DC Close System Reset 16 (-) Active Low JP7 - Onboard Sound Open Enabled JP6 - DIMM Voltage (A/B) 1-2 3.3v DC Closed Disabled 2-3 5v DC JP8 - Clear CMOS 1-2 Clear CMOS JP10 - Microphone Select Open Standard 2-3 Normal Operation Closed Special JP20 - Wake On LAN 1 +5v Stand-by PWR2 - ATX Power 1 3.3v DC 2 Ground 2 3.3v DC 3 Active High 3 Ground 4 +5v DC J8 - ATX Power/Suspend 21 +5v DC 5 Ground 22 Ground 6 +5v DC 7 Ground 8 Power OK 9 5v SB 10 +12v DC 11 3.3v DC 12 -12v DC 13 Ground 14 PS-ON 15 Ground 16 Ground 17 Ground 18 -5v DC 19 +5v DC 20 +5v DC CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
