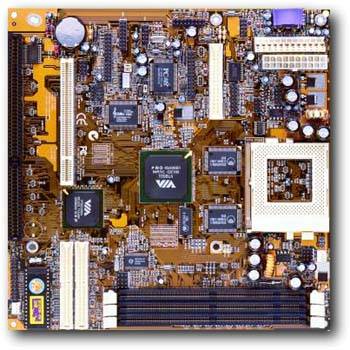

PM-585LMR - AMPTRON
VIA GRA HT8501/HT82C686A chipset Supports all recent socket-7 processors including the Intel P55C (Pentium MMX), the Cyrix/IBM 6x86L, 6x86MX, 6x86 MII, AMD K6, K6 II, K6 III, IDT C6 and WinChip 2 and 2A processors. Supports up to 768MB of SDRAM in three 3 v 168-pin SDRAM DIMM slots. Supports both 66 and 100MHz BUS memory. This board will support both ECC and non-ECC memory modules. Onboard 64-bit VIA686 video system. Onboard C-Media CMI8738 3D full duplex surround sound system. Onboard Davicom 9102 10Base-T/100Base-TX fast PCI LAN adapter with RJ45 jack. Onboard V.90 PCTel HSP56 MicroModem which supports V.32, V.32bis, V.34, and V.90 standards. Built-in hardware monitoring circuitry to monitor the CPU core temperature, fan speed and motherboard voltages. (1) 32-bit PCI, (1) 8/16-bit ISA, (1) AT Keyboard, (1) Serial, (1) Parallel, (4) USB and (1) PS/2 port. NOTE: The USB and PS/2 ports are only available on an optional ATX form card. Support or UltraDMA 33 and 66 modes. FEATURES: Socket-7 Processor Support Supports all recent socket-7 processors including the Intel P55C (Pentium MMX), the Cyrix/IBM 6x86L, 6x86MX, 6x86 MII, AMD K6, K6 II, K6 III, IDT C6, and WinChip 2 and 2A CPUs. Supports socket-7 processors with system BUS frequencies of 60/66/75/83/90/95 and 100MHz. Jumperless configuration. CPU Plug and Play support lets the firmware automatically configure the CPU. 512K external Level 2 cache memory onboard. Memory Support Three DIMM slots for 3V SDRAM 168-pin memory modules Supports for 66 and 100MHz BUS memory Maximum installed memory can be 3 x256MB for a total of 768MB Supports both ECC (Error Correcting Code) and non-ECC memory Expansion Slots (1) 32-bit PCI slot (1) 8/16-bit ISA slot Onboard IDE Channels Primary and Secondary PCI IDE channels Support for PIO (programmable input/output) modes Support for BUS mastering and UltraDMA 33/66 modes Power Supply and Power Management Provides AT/ATX power connector Support for Power button/Suspend switch Supports Wake on Modem, Wake on Alarm (Wake on Real Time Clock) Sound System Meets PC98 audio specifications Full duplex playback and recording with built-in 16-bit CODEC HRTF 3D professional audio supports both Direct Sound 3D and A3D compatible interfaces plus support for 4-channel speakers. Drivers support Windows 3.1, 95, 98, NT 4.0, 2000 and Linux. Built-in 32 ohm earphone buffer and 3D surround sound. Provides MPU-401 Game/MIDI port and legacy Sound Blaster 16 support. Downloadable Wave-table Synthesizer supports Direct Music. Stereo Mixer supports analog mixing from CD-Audio, Line-in and digital mixing from Voice, FM/Wave-table and digital CD-Audio. Onboard I/O Ports Floppy disk drive port with 1MB/s transfer rate. (1) Serial port with 16550-compatible fats UART (1) Parallel port with support for ECP and EPP specifications Optional (4) USB ports and (1) PS/2 port with purchase of the optional ATX Form card. (1) Optional Infrared port. Hardware Monitoring Built-in hardware monitoring for CPU and system temperature and fan speeds. Auto sense mainboard voltages. Support AMI's Desktop Client Manager Software (ADCM). Built-in LAN Adapter Onboard 10Base-T/100Base-TX fast PCI LAN adapter. LAN controller integrates Fast Ethernet MAC and PHY compliant with IEEE802.3u 100Base-TX, 10Base-T and ANSI X3T12 TP-PMD standards. Compliant with ACPI 1.0 and Network Device Class Power Management 1.0 High performance provided by 100Mbps clock generator and data recovery circuit for 100Mbps receiver. Fax/Modem DAA Module PCTel HSP 56 MicroModem 56 Kbps Fax/Modem DAA module Supports V.90, V34, V.32bis, V.32, V22bis and V.22 standards Supports auto fallback and MNP 5, V.42bis data compression with 115200 compatible Virtual UART. Require a minimum of 16MB or dedicated RAM and Windows 95/98/NT/2000 or Linux. Will not operate in DOS mode. Onboard Flash ROM Supports plug and play configuration of peripheral devices and expansion cards. Built-in Antivirus protection provided by Trend ChipAway Virus which ensures that the entire boot process is virus protected. Bundled Software PC-Cillin provides automatic virus protection under Windows 95 and 98. AMI Desktop Client Manager (ADCM) supports hardware monitoring for stand alone workstations over a network. Gamut is an audio application that includes MP3 encoding and decoding. SuperVoice is a FAX/Modem software with support for data and voice transmission MediaRing Talk is an internet telephone application allowing you to make phone calls over the internet. WordPerfect Suite 8 is a Windows version office application including a word processor, spreadsheet and more. Dimensions Baby-AT form factor (22cm x 22cm) Package Contents Motherboard User's guide IDE Cable Floppy drive ribbon cable Audio ports and Game/MIDI port extension bracket Serial and parallel ports extension bracket VGA extension bracket V.90 FAX/Modem DAA module 10Base-T/100Base-TX network adapter extension bracket. Driver CD-ROM Optional Accessories SPDIF Digital audio extension bracket (Sony Phillips Digital Interface) ATX Form card with (2) USB ports, IR port & PS/2 port. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
