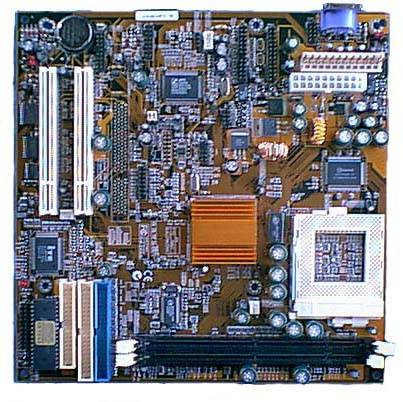

PM-586LMR - AMPTRON
SiS540 Main/Video chipset. Supports all recent socket-7 processors running at BUS speeds of 66 to 100MHz Supports up to 1 GB or SDRAM using two 168-pin DIMMs. 2 PCI, 1 Serial, 1 Parallel and 1 MIDI port. Provides AT/ATX power management features including 'Wake on LAN', 'Wake on RTC', 'Wake on Ring' and 'Keyboard Power On/Off'. SiS540 Built-in 64-bit 3D v1.0 AGP Graphics accelerator which shares up to 64 MB of main system memory to act as a frame buffer. 10BaseT/100BaseTX Ethernet LAN Built-in 56K Fax/Modem DAA Module supports V.90 MicroModem Socket-7 Processor Support Supports Intel P54C/P55C (MMX), Cyrix/IBM 6x86L, 6x86MX, 6x86MII, AMD K6, K6-II, K6-III, and IDT (WinChip) C6, 2/2A CPUs Supports CPU BUS frequencies 66 to 100Mz Provides CPU Plug and Play feature for faster and easier CPU installation Memory Support Provides (2) 168-pin DIMM slots for 3.3v SDRAM memory modules Supports a maximum of 1GB RAM (2 x 512MB for a total of 102 Supports both 1-bit ECC (Error Correcting Code) and non-ECC memory Expansion Slots (2) 32-bit PCI slots IDE Controllers (2) Onboard IDE po Supports up to (4) IDE devices Supports PIO (programmable Input/Output) and BUS mastering Supports UltraDMA 33/66 modes Power Supply and Power Management Provides both AT and ATX power connectors Supports Power button suspend switch and keyboard power on/off Supports Wake on LAN, Wake on Modem, Wake on RTC (Real-time Clock) Built-in Graphics System Onboard 128-bit 3D AGP graphics accelerator AGP v1.0 complian Supports 66/100MHz operation 64-bit GUI accelerator with excellent video playback Up to 64MB frame buffer. The video system shares a specified amount of main memory to work as video Supports resolutions up to 1920 x1200 Build-in 3D Sound System Meets PC98 audio specifications Full duplex playback and recording with built-in 16-bit CODEC. HRTF 3D professional audio supports both Direct Sound 3D and A3d compatible interfaces plus support for (4) speaker output. Drivers support Windows 3.1/95/98/NT 4.0/2000 and Linux Built-in 32 ohm earphone buffer and 3D surround sound Provides MPU-401 Game/MIDI port and legacy Sound Blaster 16 support Downloadable Wave-table Synthesizer supports Direct Music SPIFF Digital audio interface with 24-bit stereo, 44KHz sampling rate and measured 120 dB audio quality Stereo Mixer supports analog mixing from CD-Audio, Line-In, and digital mixing from voice, FM/Wave-table and digital CD-Audio Onboard I/O Ports (1) Floppy drive controller with 1 Mb/s transfer rate. (1) Serial ports with 16550 compatible fast UART (1) Parallel port with EPP and ECP capabilities (2) USB ports, (1) PS/2 keyboard, (1) PS/2 mouse, (1) Infrared interface. (Optional ATX form card needed) Built-in Ethernet Adapter Onboard 10Base-T/100Base-TX LAN Adapter LAN controller integrates Fast Ethernet MAC and PHY compliant with IEEE802.3u 100BASE-TX, 10BASE-T and ANSI X3.263 TP-PMD standards Compliant with ACPI 1.0 and the Network Device Class Power Management 1.0 standard High performance provided by 100Mbps clock generator and data recovery circuit for 100Mbps receiver Built-in Modem Module 56Kbps FAX/Modem DAA module Supports V.90, V.34, V.34bis, V.32, V.22bis and V.22 standards Supports auto fallback and MNP 5, V.42bis data compression with 115200 compatible virtual UART (Universal Asynchronous Receiver Transmitte Requires a minimum of 16MB of dedicated RAM Built-in Hardware Monitor Detects CPU temperature, Fan speed and motherboard voltages Supports Intel LANDesk Client Manager (LDCM) Onboard Flash ROM (BIOS) 2MB Flash ROM supports complete ACPI and legacy PMU and is fully compatible with PC97 and PC98 BIOS provides Plug And Play function which detects the peripheral devices and expansion cards automatically Includes built-in anti virus software provided by Trend ChipAway Anti Virus which protects the entire boot proce Bundled Software AMI Desktop Client Manager (ADCM) monitors system temperature and voltages via network connection PC Cillin98 (OEM) provides automatic virus protection for Windows 95/98 and the Internet Gamut2000 provides professional audio applications including MP3 encoding an decoding Corel WordPerFect Suite 8, take advantage of leading-edge collaboration and business tools (optional) Package Contents Motherboard User's manual System Support CD with device drivers VGA extension bracket Serial and Parallel extension bracket Audio extension bracket IDE ribbon cables Floppy drive ribbon cables V.90 FAX modem DAA module 10Base-T/100Base-TX network adapter extension bracket or PCI LAN card Dimensions Baby AT form factor (22cm x 22cm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
