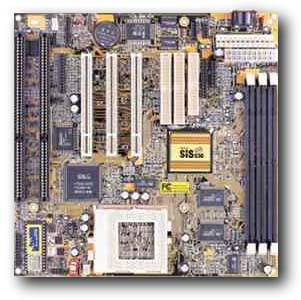

PM-598 - AMPTRON
SiS530 Main/Video chipset. Supports all recent socket-7 processors running at BUS speeds of 60/66/75/83/95 an 100MHz Supports up to 768 MB or SDRAM using three 168-pin DIMMs. 2 PCI, 1 ISA, 2 USB, 1 Serial, 1 Parallel and 1 MIDI port. Provides AT/ATX power management features including 'Wake on LAN', 'Wake on RTC', 'Wake on Ring' and 'Keyboard Power On/Off'. SiS530 Built-in 64-bit 3D v1.0 AGP Graphics accelerator which shares up to 8 MB of main system memory to act as a frame buffer. Built-in C-Media CMI8738 3D surround sound system with 24-bit digital audio interface and 44 kHz sample rate. Built-in hardware monitoring circuitry for monitoring cooling FAN RPMs, CPU temperature and operating voltages. Baby-AT form factor. FEATURES: Processor Support Supports Intel P54C/P55C (MMX), Cyrix/IBM 6x86L, 6x86MX, 6x86MII, AMD K6, K6-II, K6-III, and IDT (WinChip) C6 CPUs. Supports CPU BUS frequencies 60/66/75/83/95 and 100MHz. Provides CPU Plug and Play feature for faster and easier CPU installation. Memory Support Provides (3) 168-pin DIMM slots for 3.3v SDRAM memory modules. Supports a maximum of 768MB RAM (3 x 256MB for a total of 768MB) Supports both 1-bit ECC (Error Correcting Code) and non-ECC memory. Onboard 64-bit 1MB/2MB L2 cache (optional). Expansion Slots (3) 32-bit PCI expansion slots. (2) 8/16-bit ISA expansion slots. IDE Controllers (2) Onboard IDE ports Supports up to (4) IDE devices Supports PIO (programmable Input/Output) and BUS mastering. Supports UltraDMA 33/66 modes. Power Supply and Power Management Provides both AT and ATX power connectors Supports Power button suspend switch and keyboard power on/off Supports Wake on LAN, Wake on Modem, Wake on RTC (Real-time Clock) Built-in AGP Graphics Onboard 64-bit 3D VGA graphics accelerator. AGP v1.0 compliant Supports 66/100/133MHz operation. 64-bit GUI accelerator with excellent video playback. Up to 8MB frame buffer. The video system shares a specified amount of main memory to work as video RAM. Supports resolutions up to 1600 x 1200 Built-in 3D Sound System Meets PC98 audio specifications Full duplex playback and recording Built-in 16-bit CODEC HRTF 3D positional audio, supports both Direct Sound 3D and A3d interfaces. Supports (4) speaker output. Drivers support Windows 3.1/95/98/NT 4.0/2000 and Linux. Built-in 32 ohm earphone buffer and 3D Surround. Supports MPU-401 Game/MIDI port and legacy audio SB16 Downloadable Wave-table synthesizer support Direct Music. SPDIF Digital audio interface with 24-bit stereo 44KHz input and output with 120dB audio quality. Stereo Mixer supports analog mixing from CD-Audio, Line-In, and digital mixing from voice, FM/Wave-table and digital CD-Audio. Onboard I/O Ports (1) Floppy drive controller with 1 Mb/s transfer rate. (2) Serial ports with 16550 compatible fast UART. (1) Parallel port with EPP and ECP capabilities. (2) USB ports, (1) PS/2 keyboard, (1) PS/2 mouse (1) Infrared interface. Built-in Hardware Monitor Detects CPU temperature, Fan speed and motherboard voltages. Supports Intel LANDesk Client Manager (LDCM) Onboard Flash ROM (BIOS) 2MB Flash ROM supports complete ACPI and legacy PMU and is fully compatible with PC97 and PC98. BIOS provides Plug And Play function which detects the peripheral devices and expansion cards automatically. Includes built-in anti virus software provided by Trend ChipAway Anti Virus which protects the entire boot process. Bundled Software AMI Desktop Client Manager (ADCM) monitors system temperature and voltages via network connection. PC Cillin98 (OEM) provides automatic virus protection for Windows 95/98 and the Internet. Dimensions Baby AT form factor (22cm x 22cm) Package Contents Motherboard User's manual System Support CD with device drivers VGA extension bracket Serial and Parallel extension bracket Audio extension bracket IDE ribbon cables Floppy drive ribbon cables CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
