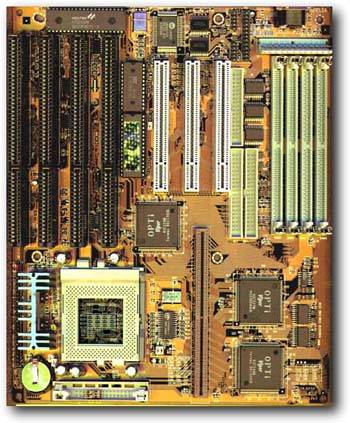

PM-7400 - AMPTRON
Viper Mainboard Intel PENTIUM (P54C & P55C) 75MHz to 200MHz, IBM/Cyrix 6x86 P120/P150 (100MHz/ 120MHz), and AMD K5 100MHz microprocessors with support fo rVoltage Regulator Module (VRM) Up to 256 MB main memory with 4 (2 Bankd) auto banking 72-pins SIMM slots for Fst Page Mode or EDO DRAM 256 or 512KB Pipeline Burst Cache with optional COAST cache module EIDE 2 PCI EIDE interface for up to 4 EIDE devices in 2 channels. 2 x 16550 Fast Serial Ports 1 x SPP, EPP & ECP modes capable Parallel Port 1 x Floppy drive connector 3 PCI Local Bus slots with Master Mode 4 x 16 bit ISA Bus slots Award PnP BIOS AT form factor 8 5/8" x 10 1/4" (22cm x 26cm) -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: -------------------------------------------------------------------------------- JUMPER SETTINGS AND HEADER PIN-OUTS JUMPER PIN(s) FUNCTION If CLK chip at location U20 is "CYxxxx-" If CLK chip at location U20 is "Wxxxx-" CPU Type (Intel Pentium P54C & P55C) J5A:Ext. Battery/Clear CMOS 2-3 Normal Operation JP 3A JP 3B JP 3A JP 3B CPU Speed Input Clock 3-4 Clear CMOS Open Shorted Shorted Open 90MHz 60MHz 1 Ext. Battery (+) Shorted Open Open Shorted 100MHz 66.67MHz 4 Ext. Battery (-) Open Shorted Shorted Open 120MHz 60MHz Shorted Open Open Shorted 133MHz 66.67MHz J5B - Keylock & Power LED 1 LED Power Open Shorted Shorted Open 150MHz 60Mhz 2 N/C Shorted Open Open Shorted 166MHz 66.67MHz Ground Clear CMOS Shorted Open Open Shorted 200MHz 66.67MHz 4 Keyboard Lock CPU Type (IBM/Cyrix) 5 Ground Shorted Shorted Shorted Shorted 100MHz 50Mhz Open Shorted Shorted Open 120MHz 60Mhz J5C - Keylock & Speacker 1 Speaker Data Out CPU Type (AMD K5) 4 + 5V Shorted Open Open Shorted 100MHz 66.67Mhz JP 4A, JP 4B - CPU Clock Multiplier Selection Jumper JP 4A JP 4B CPU Speed Value J5D - System Reset Open Normal CPU Type (Intel Pentium P54C & P55C) Open Open 75/90/100MHz 1.5x Shorted Reset Open Shorted 120/133MHz 2x Shorted Shorted 150/166MHz 2.5x J5E - On-board IDE HDD LED 1 LED (+) Shorted Open 180/200MHz 3x 2 LED (-) IBM/Cyrix 6x86(M1) Open Shorted 100/120MHz 2x AMD K5 Open Open 100MHz 1.5x J5F - Turbo Switch Open Turbo LED "On" Shorted Turbo LED "Off" J5G - Turbo LED 1 LED (+) 2 LED (-) JP1 - Flash EPROM Programming Voltage 1 ~ 2 12 Volt Flash Programming 2 ~ 3 5 Volt Flash Programming Open Default JP2 - CPU Voltage Setting 1 ~ 2 3.5v - VRE 2 ~ 3 3.3v - STD /VR CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
