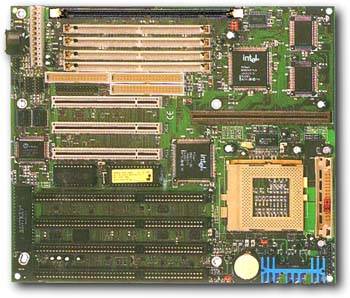

PM-7900A - AMPTRON
Intel i430VX chipset Supports Pentium, Cyrix and AMD K5 processors 75 - 200MHz in an 321-pin ZIF socket Supports up to 128MB of main memory in (4) 72-pin SIMM and (1) 168-pin DIMM slots Provides (3) 32-bit PCI and (4) 8/16-bit ISA local BUS slots AT form factor with 12-pin AT power and keyboard connectors Supports optional USB ports Supports IDE hard drives up to 8.4GB -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset Intel i430VX PCI chipset Supports 75/90/100/120/133/166/180 & 200MHz Pentium, Cyrix, and AMD K5 CPUs Supports both P54C and P55C processors Memory Supports up to 128MB of main memory Provides (4) 72-pin SIMM and (1) 168-pin DIMM slot Supports EDO & Fast Page Mode DRAM and SDRAM Supports cache module socket for 256 & 512KB Pipeline Burst cache memory Expansion Slots Provides (3) 32-bit PCI and (4) 8/16-bit ISA local BUS slots All three PCI slots support BUS Mastering mode Onboard I/O Controller Supports (2) 16550 UART fast serial ports, (1) SPP, EPP/ECP parallel port and (1) floppy drive controller with support for 1MB/s transfer rate. Supports PS/2 connector Supports optional USB port PCI IDE controller supports up to (4) IDE devices with support for PIO modes 0 - 4 and DMA Mode 2 JUMPER SETTINGS AND HEADER PIN-OUTS: JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION J1 - Power Supply 1 Power Good J2 - Keyboard Conn. 1 Keyboard Clock 2 +5v DC 2 Keyboard Data 3 +12v DC 3 Not USed 4 -12v DC 4 Ground 5 Ground 5 +5v DC 6 Ground 7 Ground USB - USB Conn. 1 +5v DC 8 Ground 2 (-) Data 9 -5v DC 3 (+) Data 10 +5v DC 4 Ground 11 +5v DC 5 Not Uued 12 +5v DC 7 +5v DC 8 (-) Data J5 - HDD LED 1 +5v 9 (+) Data 2 Active Low 10 Ground 11 Not Used J6 - Reset Switch Open Normal Operation Closed System Reset J7 - Battery Select. 1 & 4 Enternal Battery 2 & 3 Internal Battery J8 - Keylock & Power LED 1 LED Output 3 & 4 Clear CMOS 2 Not Used 3 Ground J9 - Speaker Conn. 1 Data Output 4 Keylock 2 Not Used 3 Ground JP4 - Flash ROM Voltage Open 5v 4 +5v Closed 12v JP5 - AT BUS Clock 1-2 PCI Clock / 4 JP6 - Sleep Switch Conn. 1-2 Sleep Mode On 2-3 PCI Clock / 3 All Open Normal Operation JP7 - DIMM Voltage 1-2 5v JP10, JP11 - CPU Freq. 0-1 10 Closed & 11 Open = 66MHz 2-3 3.3v 1-0 10 Open & 11 Closed = 60MHz 0-0 Both Closed = 50MHz JP12, JP13 - CPU Clock 0-1 12 Closed & 13 Open = 2.0x 1-1 12 Open & 13 Open = 1.5x JP14 - CPU Voltage 1-2 3.5v 0-0 12 Closed & 13 Closes = 2.5x 2-3 3.3v 1-0 12 Open & 13 Closed = 3.0x CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
