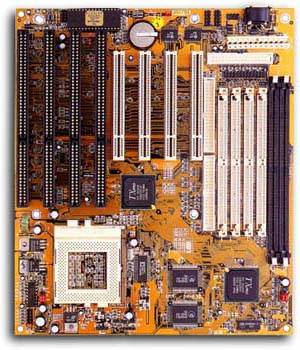

PM-8500 - AMPTRON
TX Pro Pentium PCI chipset Supports Pentium P54C / P55C, Cyrix, AMD K5/K6 and WinChip processors Supports 64Mb DRAM Supports up to 128MB of main memory Supports UltraDMA/33 and ACPI Provides a DALLAS Real-Time Clock Provides (4) 32-bit PCI and (4) 8/16-bit ISA local BUS slots Supports (2) 16550 UART serial, (1) SPP, EPP/ECP parallel and (1) high speed floppy drive controller with 1MB/s transfer rate BIOS supports NCR810 SCSI BIOS firmware -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset TX Pro Pentium PCI chipset Supports Pentium 75 - 233MHz CPUs Supports Pentium P54C / P55C, Cyrix 6x86, 6x86L, 6x86MII, IDT C6 and AMD K5/K6 processor Supports Write Allocation feature for AMSD K6 and Linear Wrap Mode for Cyrix M1 and MII processors Switching power regulator provides CPU core voltages from 2.5v to 3.5v Memory Supports 64Mb (16M x4, 8M x8 and 4M x 16) technology DRAM Provides (4) 72-pin SIMM and (1) 168-pin DIMM slots for EDO DRAM, Fast Page Mode DRAM and SDRAM memory module Supports "Table Free" configuration so that DIMM and SIMM modules can be installed in multiple configurations up to 384MB Supports onboard 512KB Pipeline Burst synchronous L2 cache Onboard I/O Chipset Onboard PCI IDE controller supports up to (4) IDE devices with UltraDMA/33 support Supports PIO modes 0 - 4 for all IDE devices Provides (2) 16550 UART fast serial, (1) SPP, EPP/ECP parallel port and (1) high speed floppy drive controller with support for 1MB/s transfer rates Supports PS/2 mouse connector and USB interface Expansion Slots Provides (4) 32-bit PCI and (4) 8/16-bit ISA local bus slots Supports PCI bus mastering for all four PCI slots JUMPER SETTINGS AND HEADER PIN-OUTS: JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION J3 - Power Connector 1 Power Good CN1 - Keyboard Conn. 1 Keyboard Clock 2 +5v DC 2 Keyboard Data 3 +12v DC 3 Not Used 4 -12v DC 4 Ground 5 Ground 5 +5v DC 6 Ground 7 Ground J2 - USB Conn. 1 +5v DC 8 Ground 2 +5v DC 9 -5v DC 3 (-) Data 10 +5v DC 4 (-) Data 11 +5v DC 5 (+) Data 12 +5v DC 6 (+) Data 7 Ground J5 - HDD LED 1 +5v 8 Ground 2 Active Low J7 - Reset Switch Open Normal Operation JP1 - Clear CMOS 1-2 Normal Operation Closed System Reset 2-3 Clear CMOS J8 - Speaker Conn. 1 Data Out J6 - Keylock & Power LED 1 LED Output 2 Not Used 2 Not Used 3 Ground 3 Ground 4 +5v DC 4 Keylock 5 Ground JP3 - DIMM Voltage 1-2 5v 2-3 3.3v JP5, JP6 - CPU Clock JP5 2-3 60MHz JP9 A/B - CPU Clock JP6 2-3 60MHz A 1-2 1.5 / 3.5x JP5 2-3 66MHz B 1-2 1.5 / 3.5x JP6 1-2 66MMHz A 2-3 2.0x JP5 1-2 75MHz B 1-2 2.0x JP6 2-3 75MHz A 2-3 2.5x JP5 1-2 83MHz B 2-3 2.5x JP6 1-2 83MHz A 1-2 3.0x B 2-3 3.0x JP4 - CPU Type (A/B) 1-2 P54C 2-3 P55C CN2 - PS/2 Mouse 1 Mouse Clock 2 Ground JP10 - CPU Core Voltage All Open 2.5v 3 Not Used E 2.8v 4 Mouse Data D 2.9v 5 Not USed C 3.2v 6 Not Used B 3.3v 7 Not Used A 3.5v 8 +5v DC JP8 - Turbo LED 1 (+) Anode J4 - Fan Power 1 +12v 2 Ground 2 Ground 3 Ground 4 +5v CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
