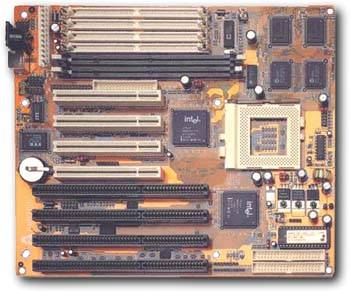

PM-8700 - AMPTRON
High performance Intel VX chipset Supports Intel Pentium P54C/P55C, Cyrix 6x86, 6x86L, and AMD K5/K6 processors Supports up to 128MB of main memory Provides (4) 32-bit PCI and (4) 8/16-bit ISA local bus slots Supports (2) 16550 UART fast serial, (1) SPP, EPP/ECP parallel and (1) high speed floppy drive controller with 1MB/s transfer rate Onboard 512KB Pipeline Burst cache -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset High performance Intel VX chipset Supports Pentium P54C (75MHz - 200MHz), Pentium MMX P55C (166MHz to 233MHz), Cyrix 6x86, 6x86L, 6x88MX, and AMD K5/K6 processors Supports 3.5, 3.3, 3.2, 2.9, 2.8 and 2.5v CPU core voltages Memory Supports up to 128MB of main memory in 4 (2 banks) auto banking 72-pin SIMM and 2 168-pin DIMM slots Supports EDO DRAM, Fast Page Mode DRAM and SDRAM Supports 512KB onboard Pipeline Burst cache Enhanced IDE Controller Two PCI EIDE interfaces for up to four EIDE devices in two channels Supports PIO modes 0 - 4 for each device BUS Architecture Four 32-bit PCI and four 8/16-bit ISA local bus slots Onboard I/O Controller Onboard interfaces for high speed multi-I/Os Two 16550 UART fast serial ports One SPP, EPP/ECP parallel port One high speed floppy drive connector One PS/2 mouse connector Supports 2.88MB floppy drives and 1MB/s transfer rates Power Management Features SMM/SMI Power Management with APM software interface Monitors CPU and I/O status with fully user configurable BIOS parameters BIOS Features AWARD "Plug and Play" flash ROM for easy BIOS updates Built-in NCR810 SCSI BIOS firmware JUMPER SETTINGS AND HEADER PIN-OUTS: JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION J4 - Keylock & Power LED 1 LED Output J4 - Speaker Conn. 1 Data Out 2 Not Used 2 Not Used 3 Ground 3 Ground 4 Keylock 4 +5v 5 Ground J5 - HDD LED 1 +5v J5 - Reset Switch Open Normal Operation 2 Ground Closed System Reset J5 - Turbo LED 1 (+) Anode JP1 - Clear CMOS 1-2 Normal Operation 2 Ground 2-3 Clear CMOS JP4 - Flash ROM Voltage 1-2 12v J2 - PS/2 Mouse 1 Mouse Clock 2-3 5v 2 Ground 3 Not Used J3 - Power Supply 1 Power Good 4 Mouse Data 2 +5v DC 5 Not Used 3 +12v DC 6 Not Used 4 -12v DC 7 Not Used 5 Ground 8 +5v DC 6 Ground 7 Ground USB1 - (2) USB Ports 1,2 +5v DC 8 Ground 3,4 (-) USB Data 9 -5v DC 5,6 (+) USB Data 10 +5v DC 7,8 Ground 11 +5v DC 9,10 Ground 12 +5v DC IR1 - Infrared Conn. 1 IRRIXL (Low) J6 - CPU Fan Power 1 +12v 2 Ground 2 Ground 3 IR TX 3 Ground 4 +5v DC 4 +5v 5 IRRXL (High) 6 +5v DC JP2 - DIMM Voltage (A/B) 1-2 5v 7 Ground 2-3 3.3v JP7 - CPU Voltage 0-1-1-1-1 3.5v 1-0-1-1-1 3.3v 1-1-0-1-1 3.2v 1-1-1-0-1 2.9v 1-1-1-1-0 2.8v 1-1-1-1-1 2.5v CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
