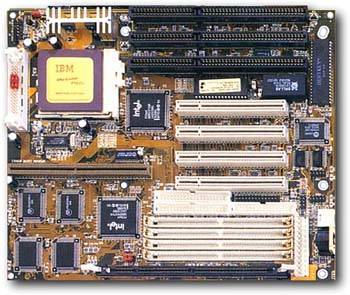

PM-8800 - AMPTRON
Intel 430VX advanced chipset Supports 75/90/100/120/133/166/180 & 200MHz Pentium, P55C, Cyrix 6x86 and AMD K5 CPUs. Supports up to 128MB of 72-pin SIMM memory in 4 banks. Supports SDRAM/EDO DRAM/DRAM and FPM memory modules. Supports upgrade cache module socket (COAST 3.0) Four 32-bit PCI slots and three 8/16-bit ISA BUS slots. Onboard super multi-I/O chipset supports two fast 16550 serial ports, one SPP, EPP/ECP parallel port, and one two channel floppy disk controller. -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset Intel i430VX PCIset chipset Supports P54C/P55C Pentium, Cyrix 6x86, and AMD K5 processors. Supports onboard Burst/Pipline burst synchronous L2 Write Back cache. Memory Uses 72-pin SIMM modules in 4 slots in multiple configurations and 168-pin DIMMs in the single DIMM slot. Supports SDRAM/EDO SDRAM and Fast Page Mode DRAM Supports upgradable cache module socket (COAST 3.0) Expansion Slots Four 32-bit local BUS PCI slots and 8/16-bit local BUS ISA slots All four PCI slots support BUS mastering PCI BUS Master IDE interface onboard supports up to 4 IDE devices in two channels. Supports PIO modes 0 - 4 with a maximum transfer rate of 16.67MB/s Onboard Super Multi-I/O Chipset Onboard super multi-I/O chip supports 2 fast 16550 UART serial ports, 1 SPP, EPP/ECP parallel port, 1 PS/2 port header and an optional USB header. SYSTEM BIOS Supports NCR810 SCSI BIOS firmware, Green features and Plug and Play configureation. Power Supply and Power Management AT style power connector PMU power management Green features support Form Factor AT form factor JUMPER SETTINGS AND HEADER PIN-OUTS: JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION J4 - Power Supply Conn. 1 Power Good J1 - Keyboard Connector 1 Keyboard Clock 2 +5v DC 2 Keyboard Data 3 +12v DC 3 Not Used 4 -12v DC 4 Ground 5 Ground 5 +5v DC 6 Ground 7 Ground J5 & J6 USB Connector 1 +5v DC 8 Ground 2 Data 9 -5v DC 3 Data 10 +5v DC 4 Ground 11 +5v DC 12 +5v DC J10 - HDD LED 1 +5v DC 2 Active Low J11 - Reset Switch Open Normal Operation Short System Reset JP7 - Clear CMOS Open Normal Operation Closed Clear CMOS J9 - Keylock & Power LED 1 LED Output 2 Not Used J8 - Speaker Connector 1 Data Output 3 Ground 2 Not Used 4 Keylock 3 Ground 4 +5v DC JP8 - Flash ROM Voltage 1-2 5v Flash ROM 2-3 12v Flash ROM JP13 - AT BUS Clock 1-2 Clock 4 (60 or 66MHz) 2-3 Clock 3 (50MHz) JP14 - Sleep Switch Open Normal Operation 1-2 Sleep Mode On JP1 & JP2 - DIMM Voltage 1-2 5v 2-3 3.3v JP5 & JP6 - CPU Speed JP5 Open 66MHz JP15 - CPU Voltage Regulator 1-2 3.5v (VRE) JP6 Open 60MHz 2-3 3.3v (STD/VR) JP5 Close 60/66MHz JP6 Close 50/66MHz J3 - PS/2 Mouse Connector 1 Mouse Data 2 Not Used 3 Ground 4 +5v DC 5 Mouse Clock 6 Not Used CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
