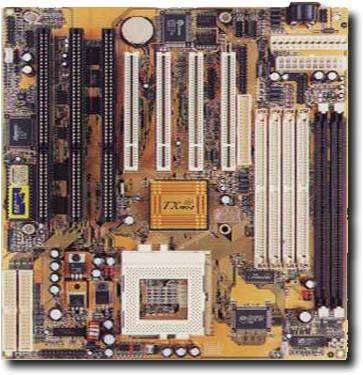

PM-9100D - AMPTRON
Via TX PRO-II chipset 66MHz Advanced Graphics Port Supports P54C/P55C Pentium, Cyrix 6x86L, 6x86MII, AMD k5/K6, and WinChip processors. Supports up to 384MB of registered SDRAM. Onboard 64-bit 512K L2 cache Supports both ACPI and legacy PMU Four 32-bit PCI and three 8/16-bit ISA local BUS slots. ATX form factor with ATX power connector. BIOS support for up to four IDE drive up to 8.4GB each. Supports Wake on Ring, Suspend and Shutdown. -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset Via TX3 advanced chipset Supports P45C/55C Pentium, AMD K5/K6, Cyrix 6x86L/6x86MII, IDT WinChip and some Rise processors. Supports BUS speeds of 50/55/60/66/75 and 83MHz. Memory Supports 3 banks of FPM/EDO SIMM/DIMM and SDRAM DIMM memory expandable up to 512MB. Four 72-pin SIMM and Two 168-pin DIMM slots. Onboard 64-bit 512KB or L2 cache. Power Supply and Power Management Provides dual 20-pin ATX power connector and AT 12-pin power connector. Supports Wake on Ring, Suspend and Shutdown. Supports both ACPI and legacy PMU Supports Grean Features Expansion Slots Three 32-bit PCI local BUS slots and two 8/16-bit ISA BUS slots All four PCI slots support BUS Mastering Onboard I/O Supports UltraDMA/33, two channel PCI BUS Masterin IDE and PIO modes 0 - 4 Supports a maximum transfer rate of 33MB/s. Onboard super multi-I/O chip supports two fast 16550 serial ports, one SPP, EPP/ECP parallel port and one two channel floppy disk controller. Onboard PS/2 port header Onboard Video Chipset High performance 64-bit GUI accelerator with excellent video playback Up to 4MB of main memory shared with video chipset to work as a frame buffer. Maximum resolution of 1024 x 768 with 256 colors. Onboard Sound Pro Chipset SoundBlaster Pro 16 compatible sound system with stereo voices up to 48KHz sample rate. HRTF 3D positional audio technology Windows sound system v2.0 compatible Accelerated Direct Sound for Windows 9x Full duplex 16-bit CODEC with filters. High quality 3D sound output. Supports 44.1K digital audio (SPDIF) input. JUMPER SETTINGS & HEADER PIN-OUTS JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION PWR1 - Power Supply 1 Power Good PWR2 - ATX Power Conn. 1 3.3v 2 +5V DC 2 3.3v 3 +12V DC 3 Ground 4 -12V DC 4 +5v 5 Ground 5 Ground 6 Ground 6 +5v 7 Ground 7 Ground 8 Ground 8 Power OK 9 -5V DC 9 5v SB 10 +5V DC 10 +12v 11 +5V DC 11 3.3v 12 +5V DC 12 -12v 13 Ground VGA - VGA Connector 1 Red 14 PS-ON 2 Green 15 Ground 3 Blue 16 Ground 4 Not Used 17 Ground 5 Ground 18 -5v 6 Ground 19 +5v 7 Ground 20 +5v 8 Ground 9 Vcc ATX Form Card Connector 1 +5v DC 10 Ground 2 - Data 11 Not USed 3 + Data 12 DCC Data 4 Ground 13 Horizontal Sync 10 +5v DC 14 Vertical Sync 11 - Data 15 DDC Clock 12 + Data 13 Ground ATX - PS/2 Mouse 5 +5v DC 6 Mouse Clock ATX - IR Port 7 Ground 15 Mouse Data 8 Reserved 16 Ground 9 +5v DC 17 IR In J3 - Keylock & Pwr LED 1 LED Output 18 IR Out 2 Not Used 3 Ground J3 - Turbo LED 1 Anode 4 Keylock 2 Ground 5 Ground J3 - Standby LED 1 Anode J3 - Reset Switch Open Normal Mode 2 Ground Close Reset System J3 - HDD LED 1 +5v J3 - Speaker Connector 1 Data Output 2 Active Low 2 Not Used 3 Ground J2 - Fan Power 2 +12v 4 +5v 3 Ground JP2 - Clear CMOS 1-2 Normal Operation JP4 - DIMM Voltage 1-2 5v 2-3 Clear CMOS 2-3 3.3v JP3 - VGA Enable/Disable 1-2 Disabled JP8 - CPU Type 2-3 Enabled A 2-3 P54C B 2-3 P54C A 1-2 P55C (MMX) B 1-2 P55C (MMX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
