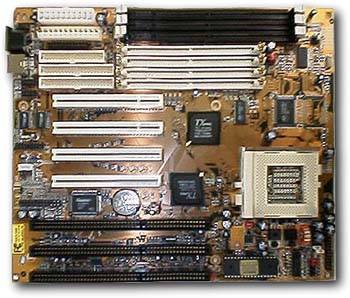

PM-9400A - AMPTRON
TX Pro chipset Supports Pentium P54C/P55C, Cyrix 6x86, 6x86L, 6x86MX, AMD K5/K6 and IDT C6 CPUs Supports clock speeds of 60/66/75 and 83.3MHz Supports up to 384MB of main memory Onboard 1MB L2 Pipeline Burst synchronous cache memory Supports UltraDMA/33 and ACPI Provides (4) 32-bit PCI and (3) 8/16-bit ISA local bus slots Onboard C-Media CMI8330 3D positional sound system Supports optional ATX form card which provides PS/2, USB and IR ports -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset Intel 439TX Pro chipset Supports Pentium P54C/P55C , Cyrix 6x86, 6x86L, 6x86MX, AMD K5/K6 and ID C6 processors Supports clock speeds of 60/66/75 and 83.3MHz Supports Write Allocation feature for AMD K6 and Linear Wrap Mode for Cyrix M1 and MII processors Memory Supports up to 384MB of main memory Supports Error Checking & Correction Supports 64Mb (16Mx4, 8Mx8, 4Mx16) DRAM and SDRAM modules Supports EDO DRAM. Fast Page Mode DRAM, and SDRAM Support single SIMM module support Provides (4) 72-pin SIMM and (3) 168-pin DIMM slots Provides 1MB of onboard L2 Pipeline Burst synchronous cache memory Enhanced IDE Controller Supports up to four devices in two channels Supports PIO modes 0 - 4, ACPI and UltraDMA/3 Onboard Multi-I/O Chipset Supports PCI bus mastering for all four PCI slots Supports (2) 16550 UART fast serial ports, (1) SPP, EPP/ECP parallel port, (1) high speed floppy drive controller and PS/2 mouse port Supports an optional ATX form card which provides additional PS/2, USB and IR ports Onboard C-Media Sound System Integrated C-Media CMI8330 chipset Supports HRTF 3D positional audio with stereo voice channels Windows Sound System v2.0 compliant Supports 44.1KHz digital audio (SPDIF) Input/Output Sample rates up to 48KHz HSP-23 Wavetable synthesizer, full-duplex 16-bit CODEC with stereo filters Power Management Provides both 12-pin AT and 20-ATX power connectors Supports SMM/SMI, APM and ACPI as well as legacy PMU Supports Suspend Mode, Wake on Alarm, and Shutdown BIOS AMI BIOS supports NCR810 SCSI BIOS firmware and "Plug and Play" features 2MB EEPROM chip for easy BIOS updates JUMPER SETTINGS AND HEADER PIN-OUTS: JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION J3 - ATX (2) USB Conn. 1, 10 +5v J3 - PS/2 Mouse 5 +5v 2, 11 (-) Data 6 Mouse Clock 3, 12 (+) Data 15 Mouse Data 4, 13 Ground 16 Ground J3 - Infared Conn. 7 Ground J2 - Keylock & Power LED 2 LED Output 8 Not Used 4 Not Used 9 +5v 6 Ground 17 IR Input 8 Keylock 18 IR Output 10 Ground J2 - Speaker Conn. 1 Data Out J2 - Turbo LED 13 (+) Anode 3 Not Used 14 Ground 5 Ground 7 +5v J2 - HDD LED 15 +5v 16 Active Low J2 - Reset Switch Open Normal Operation Closed System Reset J2 - Suspend LED 19 +5v 20 Active Low J1 - Fan Power 1 +12v 2 Ground JP1 - Clear CMOS 1-2 Clear CMOS 3 Ground 2-3 Normal Operation 4 +5v JP4 - DIMM Voltage 1-2 5v JP3 - CPU Type 1-2 P55C 2-3 3.3v 2-3 P54C JP6 - CPU Voltage (A-F) F 2.5v JP5 - CPU Multiplier (A/B) E & F 2.8v A 1-2 1.5 / 3.5x D & F 2.9v B 1-2 1.5 / 3.5x C & F 3.2v A 2-3 2.0x B & F 3.3v B 1-2 2.0x A & F 3.5v A 2-3 2.5x All Open 2.2v B 2-3 2.5x A 1-2 3.0x JP7 - CPU Clock (A/B) 0-0 60MHz B 2-3 3.0x 1-0 66MHz 0-1 75MHz JP9 - Sound Enable/Disable Open Enabled 1-1 83MHz Closed Disabled J5 - Microphone Type Open Standard Closed Special CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
