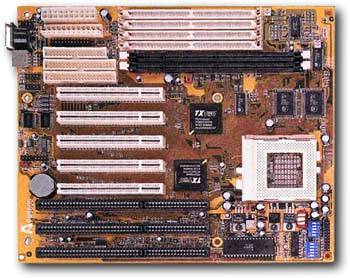

PM-9600 - AMPTRON
TXTwo Chipset Supports Pentium P54C/P55C, Cyrix/IBM 6x86, 6x86L, 6x86MX, AMD K5/K6, and IDT WinChip processors Supports up to 512MB of main memory in 4 SIMM and 2 DIMM slots Onboard 1MB cache (PM-9600A) Two PCI EIDE controllers to support up to 4 devices in UltraDMA/33 mode Five 32-bit PCI and three 8/16-bit ISA local BUS slots SMM/SMI power management Two 16550 serial, one SPP, EPP/ECP parallel, one floppy controller and one PS/2 port connector AMI 'Plug and Play' modular BIOS -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset Supports Intel Pentium P54C/P55C, Cyrix 6x86, 6x86L,6x86MX, AMD K5/K6 and IDT WinChip processors High performance TXTwo chipset Switching voltage regulator supports CPU voltages of 3.5, 3.3, 3.2, 2.9, 2.8, 2.5, & 2.2v DC Memory Supports up to 512MB of main menu in two auto banking 72-pin SIMM slots for FSP or EDO DRAM and two 168-pin DIMM slots. Supports 64Mb (16M x 4, 8M x 8, 4M x 16) technology DRAM/SDRAM Supports single piece SIMM capability Cache Onboard 1MB or 512KB Pipeline Burst cache Up to 512MB cacheable memory size Enhanced IDE Controller Two PCI EIDE interfaces for up to four IDE devices in two channels Individual support for PIO modes 0 - 4 and UltraDMA/33 mode transfers BUS Architecture Five 32-bit PCI local BUS slots and three 8/16-bit ISA local BUS slots Onboard I/O Controller Onboard interfaces for high speed multi-I/O Two 16550 UART fast serial ports, one SPP, EPP/ECP parallel port and one high speed floppy drive controller One PS/2 port connector Supports optional ATX form card which provides one PS/2 port, one IR port and two USB ports Power Management SMM/SMI power management with APM software interface monitors CPU and fan speeds and mainboard voltages Supports Suspend mode, Wake on Ring, RTC soft-on, and ACPI BIOS Features AMI 'Plug and Play' flash ROM for east BIOS upgrades JUMPER SETTINGS AND HEADER PIN-OUTS JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION PWR1 - AT Power Conn. 1 Power Good J3 - Optional ATX Form Card 1 +5v DC (USB 1 Pins 1-8) 2 +5v DC 2 +5v DC 3 +12v DC 3 (-) Data 4 -12v DC 4 (-) Data 5 Ground 5 (+) Data 6 Ground 6 (+) Data 7 Ground 7 Ground 8 Ground 8 Ground 9 -5v DC 10 +5v (PS/2 Mouse Pins 10-13) 10 +5v DC 11 Mouse Data 11 +5v DC 12 Mouse Clock 12 +5v DC 13 Ground 14 Ground (IR Connector Pins 1-4) PS2 - PS/2 Mouse 1 Mouse Clock 15 IR Input 2 Ground 16 Reserved 3 Not Used 17 IR Output 4 Mouse Data 18 +5v DC 5 Not Used 6 Not Used JP2 - Flash ROM Voltage 1-2 12v Flash ROM 7 Not Used 2-3 5v Flash ROM 8 VCC J2 - Keylock & Power LED 2 LED Output J2 - Speaker Connector 1 Data Output 4 Not Used 3 Not Used 6 Ground 5 Ground 8 Keylock 7 +5v DC 10 Ground J2 - Turbo LED 13 Signal J2 - HDD LED 15 Vcc 14 Ground 16 Signal J2 - Reset Switch 17 Signal J2 - Suspend LED 19 Vcc 18 Ground 20 Signal J2 - Suspend Switch 21 Signal JP1 - Clear CMOS 1-2 Clear CMOS 22 Ground 2-3 Normal Operation JP4 - DIMM Voltage (A/B) 1-2 5v DC JP3 - CPU Type Select (A/B) 1-2 P55C Dual Voltage 2-3 3.3v DC 2-3 P54C Single Voltage DSW1 - Multiplier (1,2,3) 0-0-0 Off, Off, Off = 1.5x DSW1 - Clock Freq. (4,5) 1-1 60MHz 1-0-0 On, Off, Off = 2.0x 0-1 66MHz 1-1-0 On, On, Off = 2.5x 1-0 75MHz 0-1-0 Off, On, Off = 3.0x 0-0 83MHz 0-0-0 Off, Off, Off = 3.5x 1-0-1 On, Off, On = 4.0x DSW2 - CPU Core Voltage (1-6) 000000 Off, Off, Off, Off, Off, Off = 2.2v 1-1-1 On, On, On = 4.5x 000001 Off, Off, Off, Off, Off, On = 2.5v 000011 Off, Off, Off, Off, On, On = 2.8v J1 - Fan Power Conn 1 +12v 000101 Off, Off, Off, On, Off, On = 2.9v 2 Ground 001001 Off, Off, On, Off, Off, On = 3.2v 3 Ground 010001 Off, On, Off, Off, Off, On = 3.3v 4 +5v 100001 On, Off, Off, Off, Off, On = 3.5v JP8 - Memory Bank (A/B) 1-2 3 Memory Banks 2-3 4 Memory Banks CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
