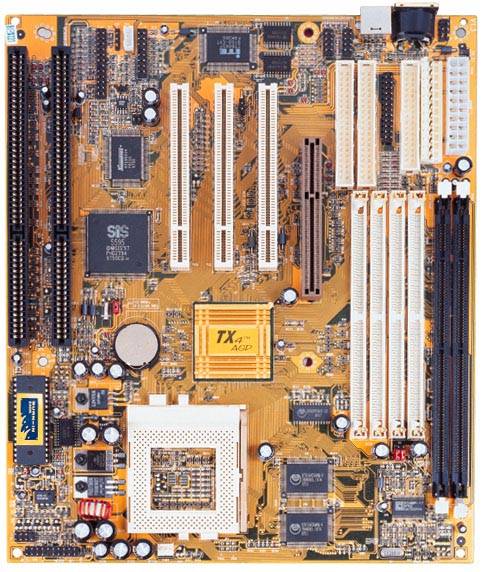

PM-9700 - AMPTRON
SiS 5598 chipset Supports P54C/P55C Pentium, Cyrix 6x86L, 6x86MX, 6x86MII, AMD K5/K6 and WinChip CPUs Supports clock speeds of 60/66/75 and 83MHz Supports up to 640MB of memory in four SIMM and two DIMM slots. Onboard 1MB L2 cache AGP v1.0 graphics port Integrated hardware monitoring IC to monitor CPU and fan status Three 32-bit PCI and two 8/16-bit ISA local BUS slots Onboard C-Media CMI8330 3D positional audio sound system -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset SiS 5598 Supports P54C/P55C Pentium (MMX), Cyrix/IBM 6x86L, 6x86MX, 6x86MII, AMD K5/K6 and IDT WinChip processors Supports clock speeds of 60/66/75 and 83MHz Memory Supports four SIMM and two DIMM slots to form three memory banks Supports Fast Page Mode (FPM), EDO SIMM and DIMM and SDRAM DIMM memory modules Supports up to 640MB of memory in various configurations Supports 64Mb (16Mx4, 8Mx8 4Mx16) DRAM and SDRAM technologies Onboard 1MB of L2 cache Expansion Slots (3) 32-bit PCI, (2) 8/16-bit ISA and (1) v1.0 AGP slots PCI BUS Master IDE interface with two connectors and support for up to four devices PCI IDE controller supports PIO modes 0 - 4 and UltraDMA/33 Hardware Monitoring Supports fan status, CPU temperature, and board voltage monitoring and alarms Onboard LM75 and LM78 hardware monitoring ICs Power Supply and Power Management Provides dual 20-pin ATX power connector and AT 12-pin power connector. Supports Wake on Ring, ATX power button, Suspend mode, Wake on LAN and Wake on Alarm Supports both ACPI and legacy PMU and is fully PC97 & PC98 compliant Onboard I/O Onboard super multi-I/O chip supports (2) 16550 UART fast serial ports, (1) SPP, EPP/ECP parallel port, (1) PS/2 mouse port header and (1) floppy drive controller with 1MB/s transfer rate Onboard Sound System SoundBlaster 16/PRO compatible with stereo voices up to 48KHz sampling rates and HRTF 3D positional audio support Windows sound system v2.0 compatible, accelerated DirectSound 3D in Windows 9x Supports 44.1KHz digital audio (SPDIF) In/Out, HSP-23 Wavetable synthesizer, full duplex 16-bit CODEC with filters and high quality 3D sound. Stereo mixer supports analog and digital mixing from CD-Audio, Microphone, Line-In and FM-Wave-table. JUMPER SETTINGS AND HEADER PIN-OUTS: JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION J2 - ATX USB (2) 1 +5v DC J2 - ATX PS/2 Mouse 9 +5v DC 2 +5v DC 11 Mouse Clock 3 (-) Data 12 Mouse Data 4 (-) Data 14 Ground 5 (+) Data 6 (+) Data J2 - ATX Infrared 13 Ground 7 Ground 15 IR High 8 Ground 16 IR Input 17 +5v DC J8 - Keylock & Power LED 1 LED Output 18 IR Output 3 Not Used 4 Ground J8 - Speaker Connector 2 Data Output 7 Keylock 4 Not Used 9 Ground 6 Ground 8 +5v J8 - Turbo LED 13 +5v DC 14 Active Low J8 - HDD LED 15 +5v DC 16 Active Low J8 - Reset Switch (17 - 18) Open Normal Operation Closed System Reset FAN2 - CPU Fan Connector 1 Sensor 2 +12v DC JP2 - Clear CMOS 1-2 Normal Operation 3 Ground 2-3 Clear CMOS JP3 - DIMM Voltage Select 1-2 5v DC J3 - Microphone Type Open Normal Mode 2-3 3.3v DC Closed Special Mode J6 - Wake on LAN Conn. 1 5v Standby 2 Ground 3 Active High CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
