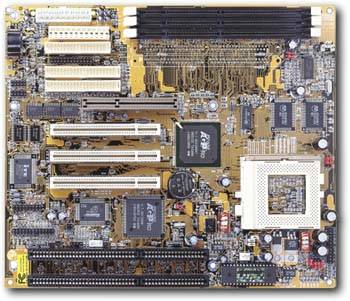

PM-9900A - AMPTRON
Via AGPro chipset Supports P54C/P55C, Cyrix 6x86L, 6x86MX, 6x86MII, AMD K6/K6-2 and IDT C6 processors Supports CPU clock frequencies of 60/66/75/83/95 & 100MHz Supports up to 384MB of main memory Supports 1MB Pipeline Burst L2 cache memory Supports ACPI, legacy PMU, and UltraDMA/33 Provides (3) 32-bit PCI, (2) 8/16-bit ISA local bus slots and (1) v1.0 AGP slot Supports optional ATX form card which provides additional PS/2, USB and IR ports Onboard C-Media CMI8330 3D positional sound system Integrated Trend ChipAway anti viral software for maximum protection against boot sector viri Supports AT and ATX power connectors and ATX power management features such as Suspend Mode, Wake on Alarm, and software Shutdown -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- FEATURES: Main Chipset Via AGPro chipset Supports Pentium P54C/P55C, Cyrix 6x86L, 6x86MX, 6x86MII, AMD K6/K6-2 and IDT C6 processors Supports CPU clock frequencies of 60/66/75/83/95 & 100MHz Memory Supports up to 384MB of main memory Supports EDO DRAM, Fast Page Mode DRAM, and SDRAM memory modules Supports 64Mb (8Mx8, 4Mx16) EDO DRAM & SDRAM Supports 1MB Pipeline Burst synchronous L2 cache Enhanced IDE Controller PCI bus master IDE interface supports up to four devices in two channels Supports PIO modes 0 - 4 and UltraDMA/33 Expansion Slots Provides (3) 32-bit PCI, (2) 8/16-bit ISA local bus slots and (1) v1.0 AGP slot All three PCI slots support bus mastering mode Onboard Sound System C-Media CMI8330 chipset HRTF positional audio with Direct Sound 3D and Aureal 3D support Software HSP23-WaveTable and 44.1KHz digital (SPDIF) Input/Output Fully PC'98 compliant Onboard Multi-I/O Chipset Supports (2) 16550 UART fast serial, (1) SPP, EPP/ECP parallel, and PS/2 mouse ports Supports high speed floppy drive controller with 1MB/s transfer rate Power Management Provides both a 12-pin AT and a 20-pin ATX power connector Supports ATX power management features such as Wake on Ring, ATX Power button, Suspend Mode and Wake on Alarm ACPI and legacy PMU compatible BIOS System BIOS supports Trend's ChipAway anti virial software to protect agenst boot sector viri that load at boot time. 1MB AWARD flash ROM firmware for easy BIOS updates Fully "Plug and Play" compatible JUMPER SETTINGS AND HEADER PIN-OUTS: JUMPER PIN(s) FUNCTION JUMPER PIN(s) FUNCTION J11 - Keylock & Power LED 1 LED Output J11 - Speaker Conn. 2 Data Output 3 Not Used 4 Not Used 5 Ground 6 Ground 7 Keylock 8 +5v 9 Ground J11 - Turbo LED 13 +5v J11 - HDD LED 15 +5v 14 Active Low 16 Active Low J11 - Reset Switch (17/18) Open Normal Operation J11 - Suspend LED 19 +5v Closed System Reset 20 Active Low FAN PWR - CPU Fan 1 Sensor JP3 - Clear CMOS 1-2 Normal Operation 2 +12v 2-3 Clear CMOS 3 Ground JP10 - CPU Type 1-2 P55C JP8 - DIMM Voltage 1-2 5v Programming 2-3 P54C 2-3 3.3v Programming JP6 - CPU Voltage (A-D) A 2.1v JP5 - CPU Multiplier (A-C) B 2.2v A 1-2 1.5 / 3.5x A & C 2.5v B 1-2 1.5 / 3.5x A,B & C 2.7v C 1-2 1.5 / 3.5x D 2.8v A 1-2 2.0x A & D 2.9v B 1-2 2.0x C & D 3.2v C 2-3 2.0x A, C & D 3.3v A 1-2 2.5x A,B,C,D 3.5v B 2-3 2.5x C 2-3 2.5x JP9 - CPU Frequency (A-D) A 1-2 3.0x A 2-3 60MHz B 2-3 3.0x B 2-3 60MHz C 1-2 3.0x C 2-3 60MHz A 2-3 4.0x D 1-2 60MHz B 1-2 4.0x A 1-2 66MHz C 2-3 4.0x B 2-3 66MHz A 2-3 4.5x C 2-3 66MHz B 2-3 4.5x D 1-2 66MHz C 2-3 4.5x A 1-2 75MHz (PCI 37.5) A 2-3 5.0x B 1-2 75MHz (PCI 37.5) B 2-3 5.0x C 2-3 75MHz (PCI 37.5) C 1-2 5.0x D 1-2 75MHz (PCI 37.5) A 2-3 5.5x A 2-3 75MHz (PCI 30) B 1-2 5.5x B 2-3 75MHz (PCI 30) C 1-2 5.5x C 1-2 75MHz (PCI 30) D 1-2 75MHz (PCI 30) A 1-2 83MHz B 2-3 83MHz C 1-2 83MHz D 1-2 83MHz A 2-3 95MHz (SDRAM 66) B 1-2 95MHz (SDRAM 66) C 1-2 95MHz (SDRAM 66) D 2-3 95MHz (SDRAM 66) A 2-3 95MHz (SDRAM 95) B 1-2 95MHz (SDRAM 95) C 1-2 95MHz (SDRAM 95) D 1-2 95MHz (SDRAM 95) A 1-2 100MHz (SDRAM 66) B 1-2 100MHz (SDRAM 66) C 1-2 100MHz (SDRAM 66) D 2-3 100MHz (SDRAM 66) A 1-2 100MHz (SDRAM 100) B 1-2 100MHz (SDRAM 100) C 1-2 100MHz (SDRAM 100) D 1-2 100MHz (SDRAM 100) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
