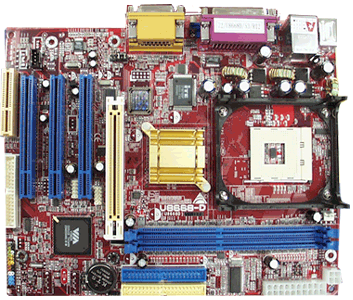

U8668-D v7.2 - AMPTRON
Northbridge: P4M266A/ Southbridge: VT8235 Supports Intel® Pentium 4 processors Supports 533MHz Front-Side Bus 2 DDR266 memory support, up to 2GB of main memory 6 USB2.0 Supported (2 x Rear, 4 x Front) Provides a AGP 4X graphics port Integrated S3 ProSavage 8 up to 32MB shared video memory Supports UltraDMA 66/100/133 CNR slot for Modem module 2 default USB 2.0 ports at back panel Specifications Main Chipset Northbridge: P4M266A/ Southbridge: VT8235 Supports Intel® Pentium 4 processors Supports 533MHz Front-Side Bus speeds Socket 478 motherboard Note: Will not support Prescott Processor 2.4GHz 533MHz L2-1M 478-Pin Memory Support Supports up to 2 DDR devices Supports 200/266MHz DDR devices 2 x 184-pin DDR SDRAM DIMM PC2100 DDR SDRAM Maximum installed memory is 2GB VGA Integrated S3 ProSavage 8 up to 32MB shared video memory USB 2.0 6 USB2.0 support (2 x Rear, 4 x Front) Compliant with Universal Serial Bus Specification Revision 2.0 Compliant with Intel's Enhanced Host Controller Interface Specification Revision 0.95 Compliant with Universal Host Controller Interface Specification Revision 1.1 PCI multi-function device consists of two UHCI HOST Controller cores for full-/low-speed signaling and one EHCI Host Controller core for high-speed signaling Root hub consists 4 downstream facing ports with integrated physical layer transceivers shared by UHCI and EHCI Host controller Support PCI-Bus Power Management Interface Specification release 1.1 Legacy support for all downstream facing ports Expansion Slots One CNR slot for a special Communication Network Riser card One AGP 2.0 compliant 4X AGP slot Three 32-bit PCI slots capable of Ultra DAM bus mastering Enhanced IDE Controller Support 4 EIDE disk drives, Supports PIO Mode 4 Master Mode and Ultra DMA 33/66/100/133 Bus Master Mode CNR Slot Communication Network Riser slot supports 56K V.90 HSP AMR FAX/Modem module AC'97 Audio Codec: AC97 2.1 specification compliant Sound Blaster compatible, 2 channel audio Onboard LAN VIA VT6103 Dual speed: 10/100Mbps Full/Half-Duplex Auto Negotiation: 10/100Mbps, Full/Half Duplex Onboard I/O Ports 1 x VGA , 1 1 x VGA, 1 x PS/2 mouse, 1 x PS/2 keyboard , 2 x Rear USB 2.0 , 4 x Front USB 2.0 ports , 1 x RJ45 port, 1 x Parallel ,1 x Serial, 1 x Lin-out/Lin-in/Mic, 1 x IrDA, 1 x Front Audio, 1 x CD in, 1xS/PDIF Out Connector, 1 x Floppy HW. Monitor CPU/System Fan Speed CPU Temperature System Voltage Vcore,+3.3V,+5V,+12V Dimensions Micro ATX form factor 9 5/8”" X 7 3/4" Package Contents U8668-D Motherboard HDD Cable x 1 FDD Cable x 1 User’s manual Setup Drivers CD CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
